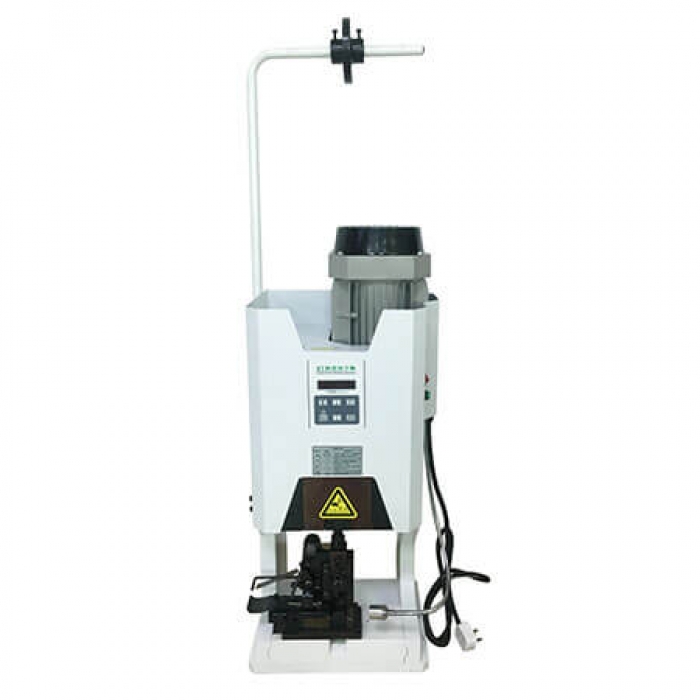

Low Noise Terminal Crimping Machine TFP-3.0UVF

Low noise Terminal Crimping Machine TFP-3.0UVF

Features:

A. Adopt inverter control, mute, energy saving, easy maintenance.
B. There are two working modes, automatic and manual.
C. Manually for the debugging mode, the terminal crimping height can be precisely adjusted to avoid personal injury and tool damage caused by misoperation.
D. The quick-loading base plate is suitable for any OTP transverse feeding and direct feeding to the mold.
E. The stamping stroke is available in 30mm/40mm.

Specifications:

Power:AC220V/50/60Hz, 1KW
Function:Crimping
Speed:2300piece/hour (depends on operator’s proficiency)
Stroke:30mm
Crimping force:3.0T
Dimension:256*226*595mm
Weight:120KG
