Home Products Wire crimping machine Benchtop Wire Crimping Machine

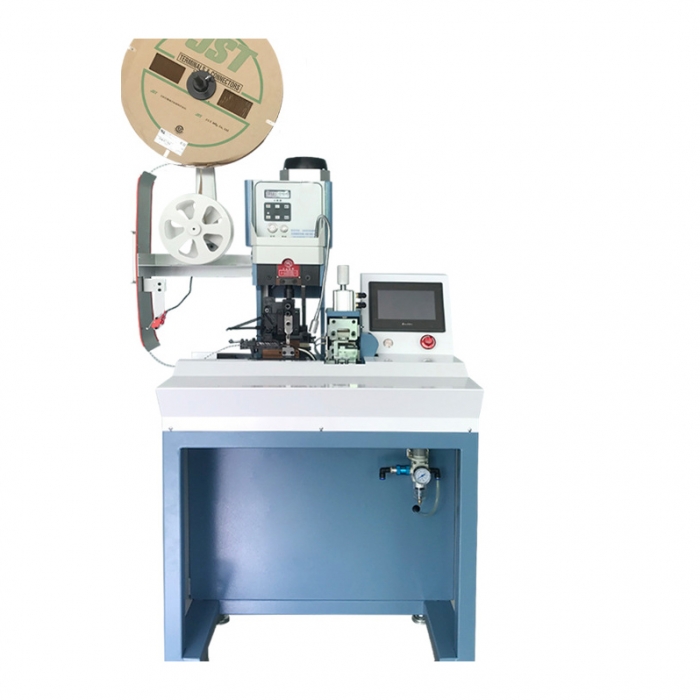

Flat Cable Strip Crimp Machine TFP-008SC

Power Supply 220V, 50-60Hz
Power 0.75Kw
Dimensions 690*450*1250mm
Processing area 0-20pins
Application multiconductor cables, ribbon cable, sheathed cable
Stripping length 0-25mm
Stroke 30mm
Press ability 2.0T
Capacity 3600pcs/hour
Applicable mold OTP side applicator and OTP end applicator

Description
TFP-008SC is specially designed for ribbon cable and multicore jacket wires.
Supporting Max 20 Pins wire stripping and crimping.
The operator only needs to put the cable into the stripping position, the other work can be finished automatically.
Each core would be stripped and crimped with pins one by one automatically.
