| Wire splitting range: 25mm-30mm. |
| Riveting range: minimum terminal: 1.25 Maximum terminal: 3.96. Up to 16PCS can be used at one time. |
| Work efficiency: can play 12000PCS/H (16PCS can be used at one time ) |
| Power supply 220V 50/60HZ |
| Power consumption 50W |
| Dimensions 580mm420mm*650mm Length*Width*Height |
| Weight 70KG |

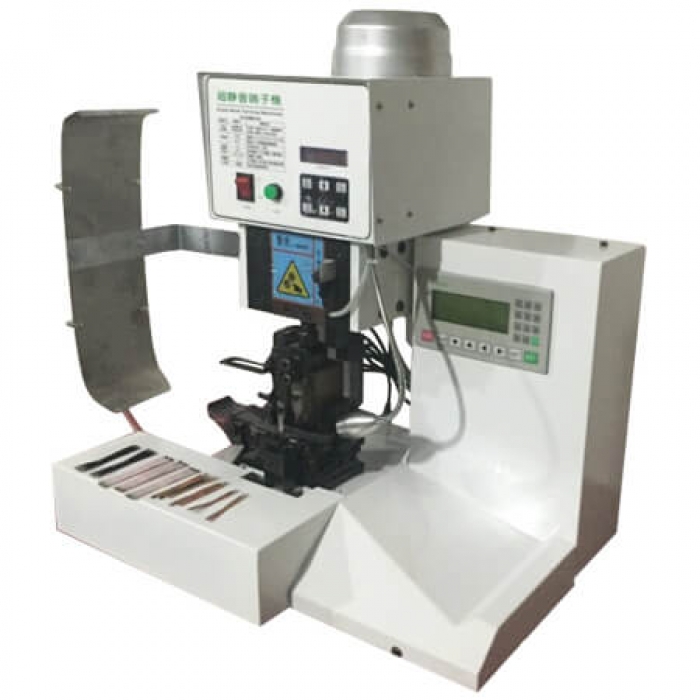

a. This is a special automatic crimping machine for ribbon cable, which can be automatically played in one time. It can improve processing efficiency, reduce labor, convenience and speed.
Production range: 1: splitting range: 25mm-30mm.
b. Riveting range: minimum terminal: 1.25 Maximum terminal: 3.96. Up to 16PCS can be used at one time.
c. Work efficiency: 16PCS/H can play 12000PCS.
d. Machine configuration: This product uses PLC and touch screen, all mechanical parts are precision processed.
