Automatic Cable Stripping Crimping Machine TFP-1.5SC

Wire Size  AWG18-30(0.05-0.85mm²)
Stroke 30mm
Crimping Force 1.5T
Stripping Length  2.0-4.0mm
Power AC220V,50/60Hz
Air source  0.5-0.7Mpa
Dimensions 375 mm x 365 mm x 435 mm
Weight 85 kg
Description

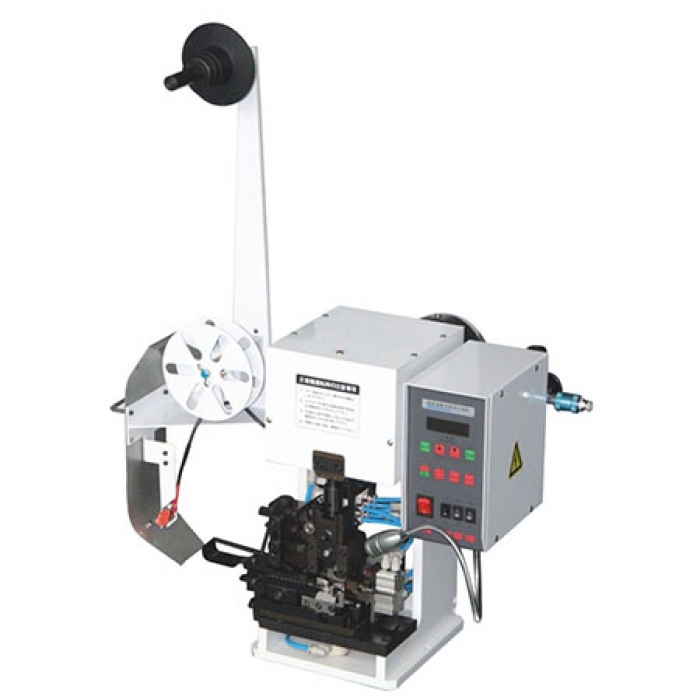

Automatic Cable Stripping Crimping Machine TFP-1.5SC
Also named Cable Stripping Crimping device TFP-1.5SC, Automatic Cable Stripping Crimping unit TFP-1.5SC, Automatic Cable Stripping Crimping equipment TFP-1.5SC


Ultra quiet terminal crimping machine with wire stripping. It strips the wire, crimps the terminal for double cable at one time.
The machine has pneumatic stripping mechanism with accurate positioning. The strip waste is sucked through vacuum for convenient and simple crimping.
The machine adopts frequency conversion control to adopt soft start and soft stop
