| wire sizes: 4-70 sqmm |
| Max diameter: 25 mm |
| Cutting Length: 1 ~ 99999mm |
| Stripping Length: Head 0~999mm, End 0~70mm |
| Memory Function: Can store Max. 100 group programs |
| Max. Middle Stripping Section: 16 |
| Cutting Tolerance: 0.002×L（L=Cutting Length) |
| Wire material: PVC, Teflon, Fiberglass cable, etc. |
| Speed: 3000-6000pcs/hour |
| Display: English LCD dispaly |
| Drive Mode: eight wheel drives |
| Blade Material: Hard tungsten steel |
| Power Supply: 220V±10% /50Hz |
| Power Rating: 600W |
| Dimensions:600*420*520mm |
| Gross Weight:100KG |
wire hardness CSC-608MAX2

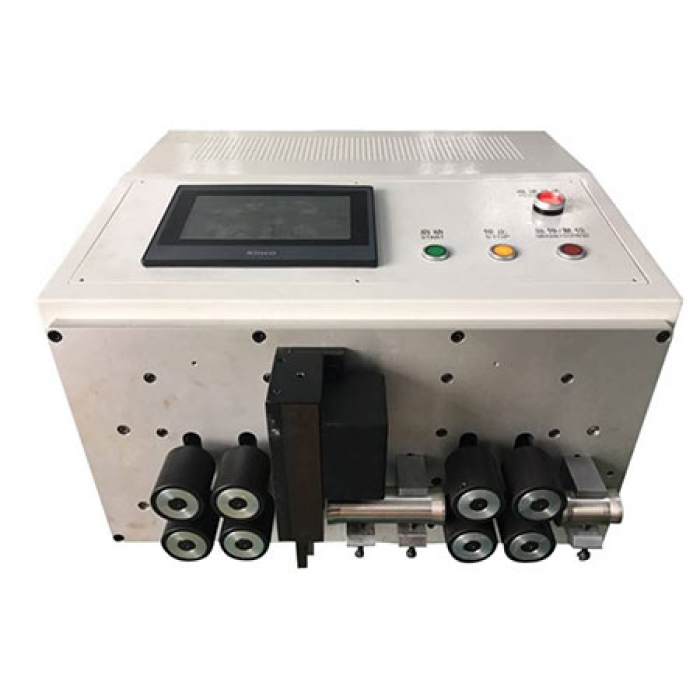

Heavy duty wire cut strip machine CSC-600MAX2
70 sqmm wire cut strip machine CSC-600MAX2
The heavy duty wire stripping machine is especially designed for processing large gauge wires and big diameter cables, it's able to process up to 70mm2 wires and Max. 25mm O.D. cables.
Specification:
wire sizes: 4-70 sqmm
Max diameter: 25 mm
Cutting Length: 1 ~ 99999mm
Stripping Length: Head 0~999mm, End 0~70mm
Memory Function: Can store Max. 100 group programs
Max. Middle Stripping Section: 16
Cutting Tolerance: 0.002×L（L=Cutting Length)
Wire material: PVC, Teflon, Fiberglass cable, etc.
Speed: 3000-6000pcs/hour
Display: English LCD dispaly
Drive Mode: eight wheel drives
Blade Material: Hard tungsten steel
Power Supply: 220V±10% /50Hz
Power Rating: 600W
Dimensions:600*420*520mm
Gross Weight:100KGatch?v=cY7T-uyxJYM
