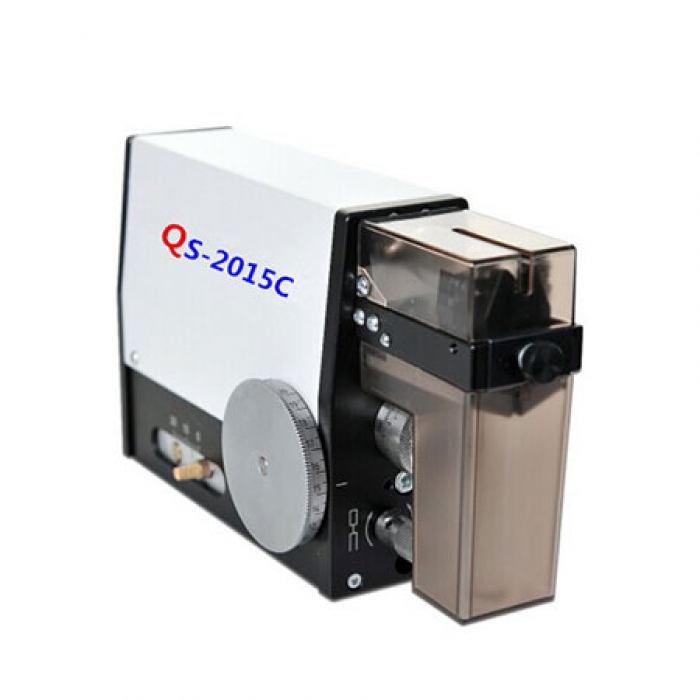

Magnet Wire Stripping Machine QS-2015C

magnet wire stripping machine QS-2015C

magnet wire stripping machine QS-2015C as schleuniger

Application

The QS2015C has been proven thousands of times over to process wires and cables. The machine operates with extremely fast cycle times and feature a universal blade system that eliminates time consuming changeovers. Absolute precision, high cost effectiveness, and a very short return of investment are the main characteristics of this machine. The compact and slender design allows for several units to be used on one workstation and has proven most efficient particularly when processing wire harnesses and multi-core cable

A simple solution
The pneumatically operated QS2015C stripping machine excels with its compact design, fast cycle times and infinite settings for conductor diameters, stripping -and pull-off lengths.

Technical specificaitons
Wire Size Range 0.03 – 2.08 mm2 (32 – 14 AWG)
Max. Outer Cable Diameter 3.2 mm
Stripping Length Increments Full strip: 0.5 mm , Partial strip: 2 mm
Precision of Diameter Setting0.01 mm
Max. Strip Length20 mm
Cycle Timeapprox.0.3 s
Dimensions (L x W x H) 273 x 72 x 137mm
WeightNet2.0 kg
Gross2.4 kg
