| Feed speed MAX 135r/min(Adjustable ) |
| Power 220V,90W |
| Dimensions 730*600*600mm |
| Weight 30 KG |
| Max. Wire Weight 25 KG |
| APPLICATION RANGE Not matter of wire roll, without roll is also OK. |
| Min. ID of wire roll 30mm |
| Max.OD of wire roll 350mm |
| Direction of rotation Adjustable (D/R Direct/Reverse) |

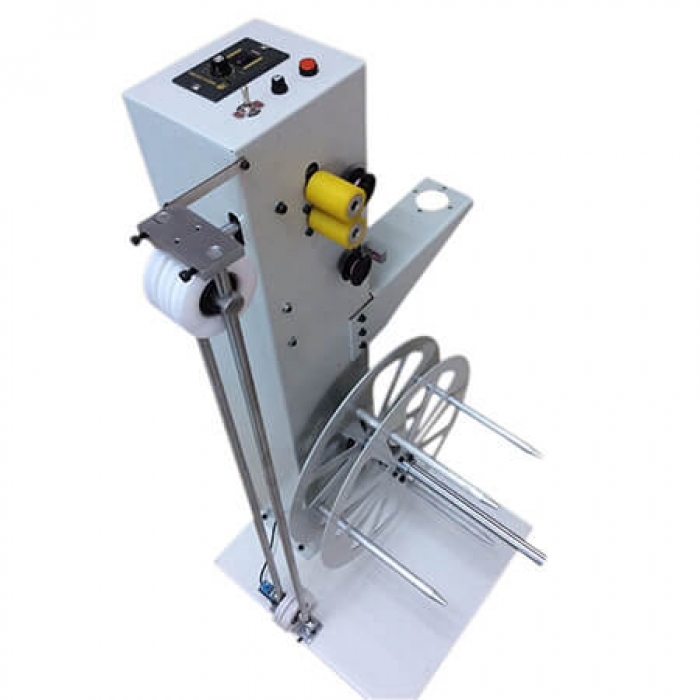

Wire Feeding Machine QSFX-35
An option for wire harness equipment (such as cable stripping machines), improve the processing quality.
QSFX-35 automatic wire feeding machine is provided with motor, pay off accumulator, sensor, frequency conversion. It renders stable delivery of wire to the cutter.
Function with active convey wire. (No need to pull wire by other machine)
Adjustable speed ensures more flexibility.
The less wire on the pay off accumalator, the faster speed the motor will be.
Adopts sensors control that ensures orderly work.
When the cutter stop operating, QSFX-35 could be sensed automatically, and then brake, recovery the wire which was feeded (needless) by interia.
There is always 5m wire on the pay off accumulator to accomplish stable work
Feed speed MAX 135r/min(Adjustable )
Power 220V,90W
Dimensions 730*600*600mm
Weight 30 KG
Max. Wire Weight 25 KG
APPLICATION RANGE Not matter of wire roll, without roll is also OK.
Min. ID of wire roll 30mm
Max.OD of wire roll 350mm
Direction of rotation Adjustable (D/R Direct/Reverse)
