| Feed speed MAX 250m/min(Adjustable ) |
| Spool weight 300KG |
| Power 220V,90W |
| Dimensions 600 × 400 × 850mm |
| Weight 300KG |
| Max. Wire Weight 50KG |
| APPLICATION RANGE Not matter of wire roll, without roll is also OK. |
| Min. ID of wire roll 30mm |
| Max.OD of wire roll 350mm |
| Direction of rotation Adjustable (D/R Direct/Reverse) |

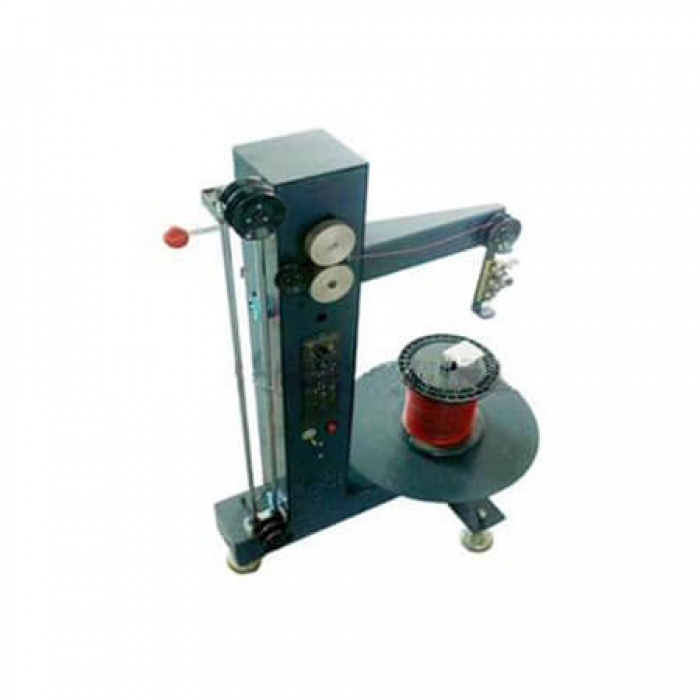

Wire Feeder System QSFX-50
Features:
A accessory for wire harness equipment (such as cutting & stripping machines), improve the processing quality.
QSFX50 automatic wire prefeeder is provided with motor, pay off accumulator, sensor, frequency conversion. It renders stable delivery of wire to the cutter.
Function with active convey wire. (No need to pull wire by other machine)
Adjustable speed ensures more flexibility.
The less wire on the pay off accumalator, the faster speed the motor will be.
Adopts sensors control that ensures orderly work.
When the cutter stop operating, QSFX-50could be sensed automatically, and then brake, recovery the wire which was feeded (needless) by interia.
There is always 5m wire on the pay off accumulator to accomplish stable work
| Specifications: | |
| Feed speed | MAX 250m/min(Adjustable ) |
| Spool weight | 300KG |
| Power | 220V,90W |
| Dimensions | 600 × 400 × 850mm |
| Weight | 300KG |
| Max. Wire Weight | 50KG |
| APPLICATION RANGE | Not matter of wire roll, without roll is also OK. |
| Min. ID of wire roll | 30mm |
| Max.OD of wire roll | 350mm |
| Direction of rotation | Adjustable (D/R Direct/Reverse) |
