Home Products wire stripping machine Coaxial Cable Stripping Machine

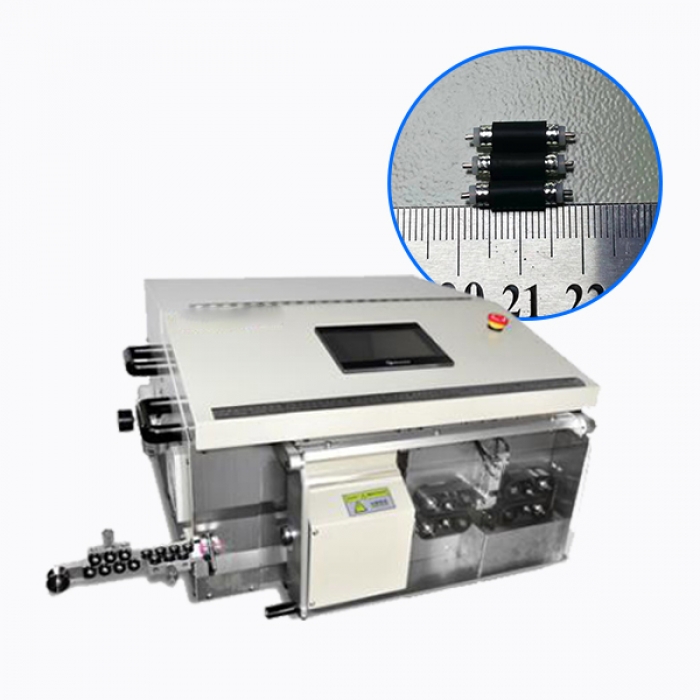

TV Coaxial Cable Strip Cut Machine CLB-9600D

Cutting capacity 15mm-220mm
Processing diameter 1.0-5.5mm
Cutting depth unit 0.01mm
Processing efficiency 400-900PCS / h (depending on the wire)
Maximum peeling layers 6 layers
Dimension 800 * 730 * 400mm
Power supply AC220V / 50 / 60HZ
Power 800W
Weight 125kg
Description
TV Coaxial Cable Strip Cut Machine CLB-9600D

1.Suitable for semi-flexible coaxial cables such as 141 and 086 in base station antenna, special size short wire processing;
2. The advanced rotary cutter head combined with the movable knife holder (cutting knife, stripping knife) enables the complex processing of various types of wire materials to be formed at one time without additional blade replacement, and the quality and efficiency are more perfect.
3. The special center positioning device and wire feeding device make the processing more precise and meet the high requirements of the communication industry.
4. Up to 100 sets of storage capacity, so that all kinds of processing data can be completely saved and retrieved at any time.
