| Available Material coaxial cable, coaxial wire |
| Wire Range Ø0.2mm-Ø6.99mm |
| Max. Stripping Layers 9 layers |
| Unit cutting depth 0.01mm |
| Stripping Length 0.1-~48mm |
| Display Way Touch screen |
| Driving Mode Motor and ball screw driving |
| Stripping Method Rotating blade |
| Blade 2pcs, Material Imports Switzerland tungsten steel |
| Locating plate 2pcs, Material Imported high-speed steel |
| Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program |
| Productivity 500~700pcs/hour(according to wire length and wire material |
| Openning way Manual / Sensor/Foot switch |
| Power Supply 220V/50Hz ,380W |
| Weight 19kg |
| Dimension 525X186X278 mm； |
| Operating Enviroment 0-50℃,moderate dryness,vibrationless workbench |

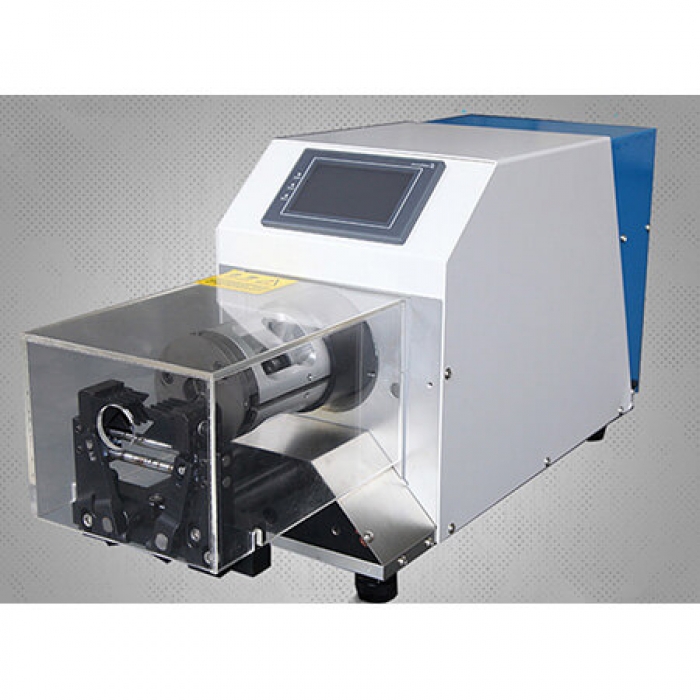

Semi-Automatic coax stripping tool Machine TZB-28
Also named semi-automatic coax stripping tool device, semi-automatic coax stripping tool equipment
Features

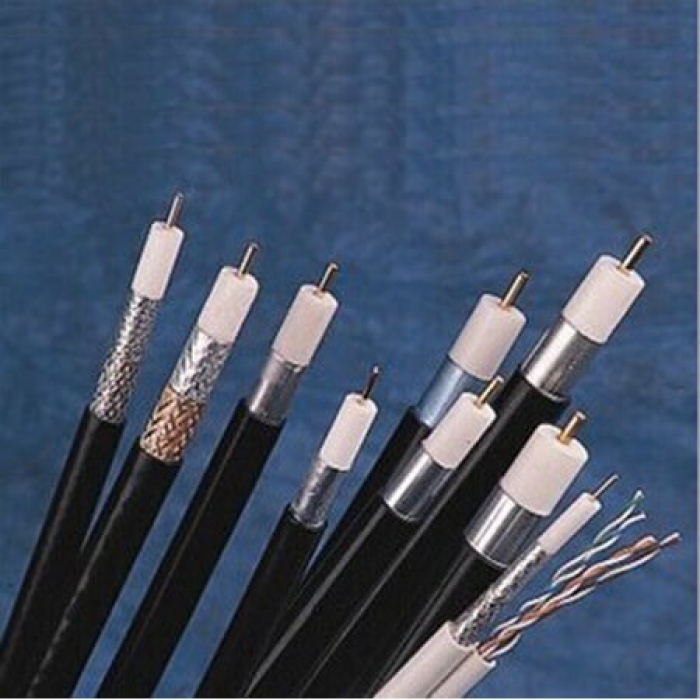

Mainly used for single wire coaxial cable and special processing.
Adopts the most advanced rotary turret, with a particular axis positioning device and rotary cutter way.
Easy operation system no need to re-find the axis position when replacing blades.
Specifications
Available Material coaxial cable, coaxial wire
Wire Range Ø0.2mm-Ø6.99mm
Max. Stripping Layers 9 layers
Unit cutting depth 0.01mm
Stripping Length 0.1-~48mm
Display Way Touch screen
Driving Mode Motor and ball screw driving
Stripping Method Rotating blade
Blade 2pcs, Material Imports Switzerland tungsten steel
Locating plate 2pcs, Material Imported high-speed steel
Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program
Productivity 500~700pcs/hour(according to wire length and wire material
Openning way Manual / Sensor/Foot switch
Power Supply 220V/50Hz ,380W
Weight 19kg
Dimension 525X186X278 mm；
Operating Enviroment 0-50℃,moderate dryness,vibrationless workbench
