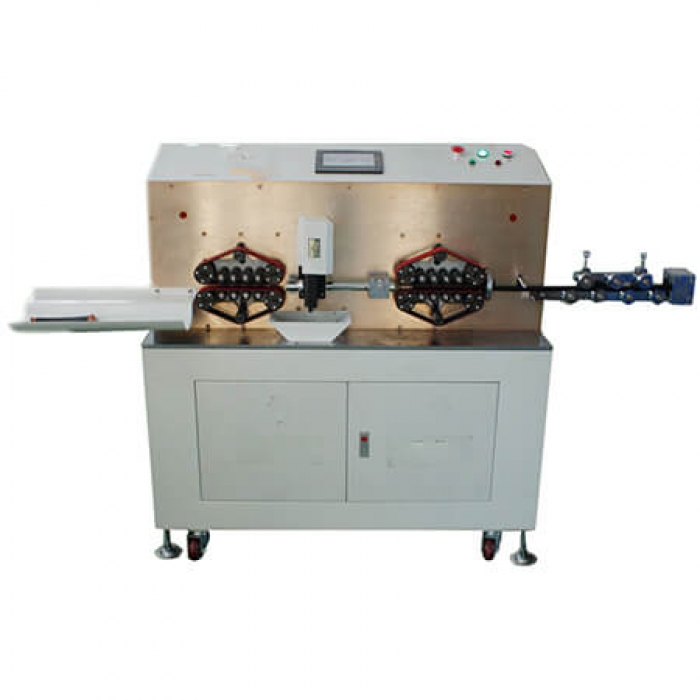

Large cable strip cut machine CSC-608XL
Features
The large cable strip cut machine is especially designed for processing power industry, electric control cabinet, battery cable with excellent performance
Specifications
wire sizes: 10-120 sqmm
Cutting Length: 10mm ~ 99999mm
Stripping Length: 1-30mm
Memory Function: Can store Max. 99 group programs
Pipe diameter: 4-40mm
Cutting Tolerance: (0.2±0.002)×L（L=Cutting Length)
Wire material: PVC, Teflon, Fiberglass cable, battary cable.
Speed: 6000pcs/hour
Display: English LCD dispaly
Drive Mode: eight wheel drives
Blade Material: Hard tungsten steel
Power Supply: 220V/50Hz
Power Rating: 2000W
Dimensions:1200mm*600mm*210mm
Weight: 280KG(without wire feeder), 560KG(with wire feeder)
