| Cutting length 8-9999mm |
| Stripping length 0.1mm-10mm |
| Cutting Tolerance ±（0.2+0.002*L）mm |
| Wire Range AWG18～AWG32 |
| Wire material PVC，PE |
| Power AC220V+/-10%,50/60HZ |
| Crimping force 2.0 T |
| Air source 0.5-0.7Mpa |
| Productivity 6100pcs/hour （L=100mm） |
| 4600-5800pcs/hour （L=100mm to 600mm） |
| Dimensions 600mm*700mm*1550mm |
| Net Weight 220kg |

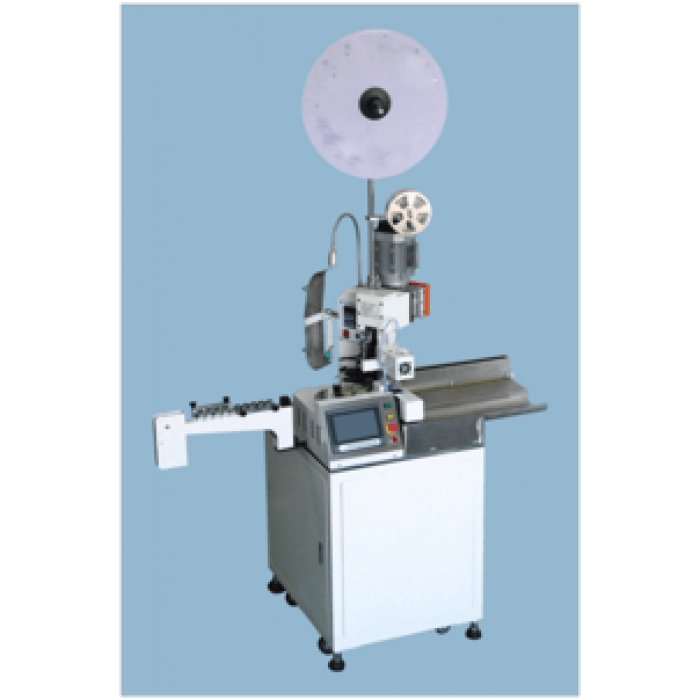

Fully automatic terminal crimping machine ACM-8502
Also named automatic machine,cable assembly machine,crimp connector machine
This is an economic single head wire crimping machine , one side only stripping and another side stripping & crimping. All parameters can be set via the touch screen, it is quick to change the settings and easy to operate. It comprises wide applications capable to fit vertical and horizontal molds. We also provide other modes with advanced functions, please contact us if you are interested.
