Fuel Cell Vehicles Cable Stripping Machine TZB-3530

Minimum processing diameter 8mm
Processing diameter 35mm
Storage capacity 100 kinds of cable processing data
Power: 20V / 50HZ 300W
Rotate 4 pieces
Weight 160kg
Dimensions 440 * 1500 * 1200mm
Material Imported Tungsten Steel
Centering blade 4
Material Imported High Speed Steel
Drive method Ball screw drive
Starting method: manual / pedal (optional)
Display method: touch screen
Efficiency Depending on the operating procedure of the total line length, it can reach at least 200-500PCS / hour
Working environment 0-50 degrees, moderate dryness, vibration-free work surface
Clamping method: automatic centering, program control intensity
Clamping device: self-aligning, motor-driven, clamping force program control

Categories:Electric Car Cable Harness

Add To Basket Get A Quote

Description

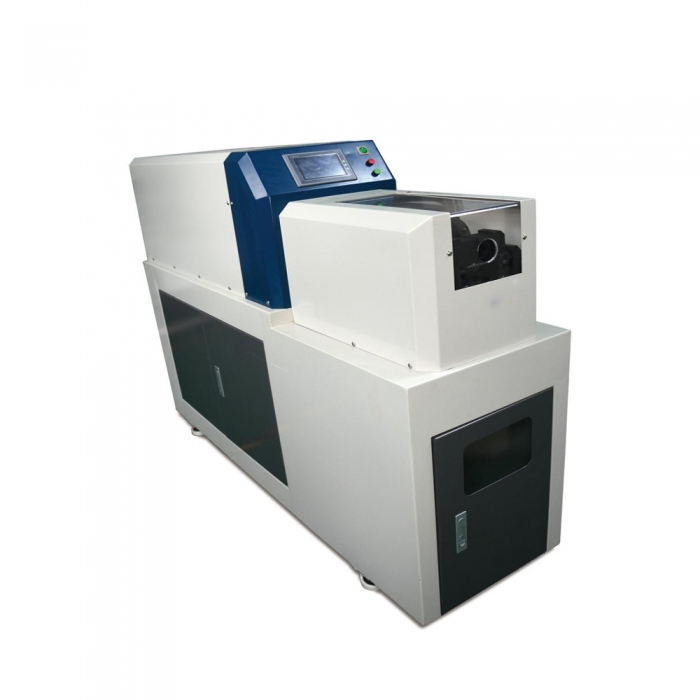

Fuel Cell Vehicles Cable Stripping Machine TZB-3530

Also called fuel cell vehicles cable stripping equipment,fuel cell vehicles cable stripping machinery.

This model is a special new energy series which is very thick and designed for cable stripping with high stripping requirements. The cable stripping processed by this model is neat and does not hurt the inner layer. And this machine has a waste collection device and article placement, which is very suitable for standard and process production.

Fuel Cell Vehicles Cable Stripping Machine TZB-3530​
