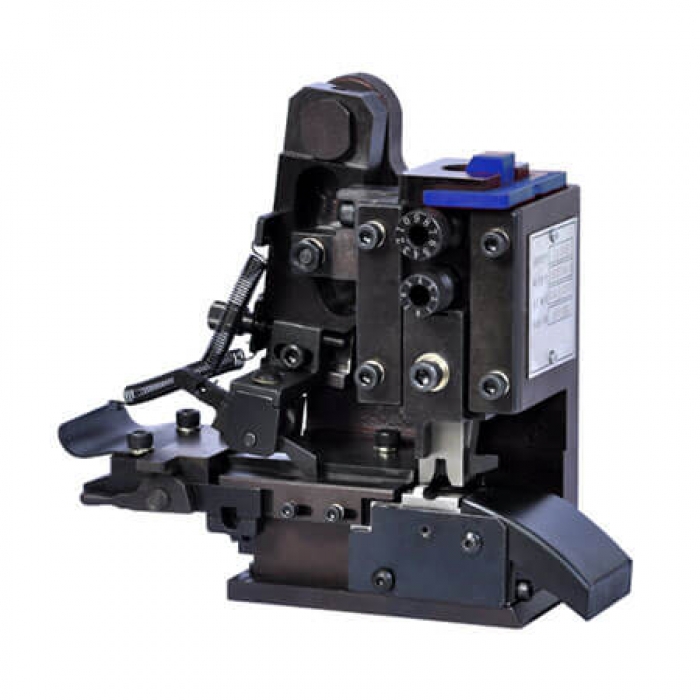

Flexible moulding JMS-01
Also named flexible moulding, die and punch, crimp tool dies
Features:
The applicator has been widely applied in small automobile and home appliance wire harness for its simple-firm structure.
C.H/I.H height adjustment accuracy reaches up to 0.05mm,and height adjustment range is 0.45/0.7mm.
Also fits for fully automatic crimping machine by changing some spare parts.
| Specifications: | |
| Terminal belt type： | Side feed |
| Shut Height: | 119.7mm |
| Stroke： | 30mm |
| Terminal Pitch: | 32mm |
| Thickness of terminal belt： | MAX.1.2mm |
| Cross Section: | 0.08-6mm²（9-30AWG） |
| Adjusting accuracy： | 0.05mm |
| Feeding System: | mechanical |
| Weight: | 4.8KG |
