| Available Core Cross-Section Range 0.1 - 8.0mm² |
| Max. Width for Flat Cable 20mm (Max. 12pins) |
| Cutting Length 5 ~ 20001mm |
| Stripping Length Head 0~15mm, End 0~15mm |
| Memory Function Can store Max. 99 group programs |
| Max. Middle Stripping Section 13 |
| Cutting Tolerance ±(0.002×L) （L=Cutting Length) |
| Speed 3000~7000pcs/hour |
| Display Way English LCD display |
| Drive Mode Four wheel drives |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 350W |
| Dimension 420 × 390 × 280mm |
| Net weight 45kg |
| Gross weight 50kg |

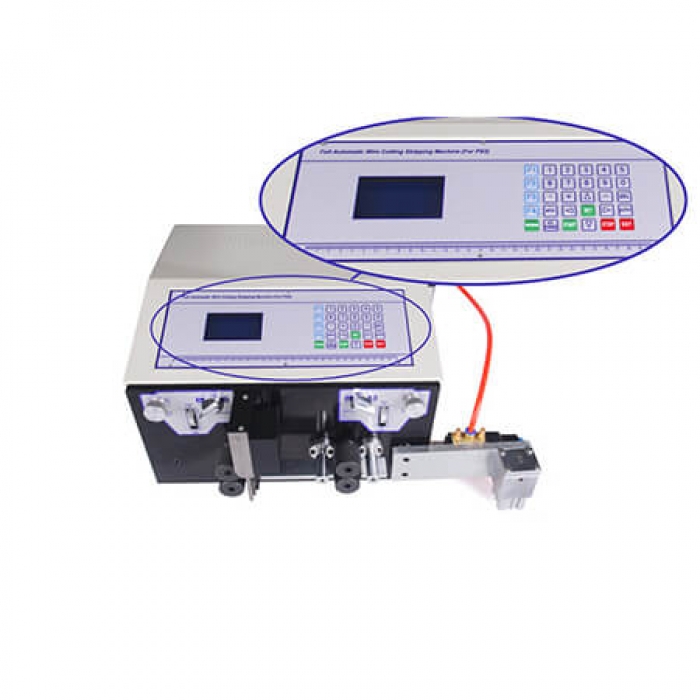

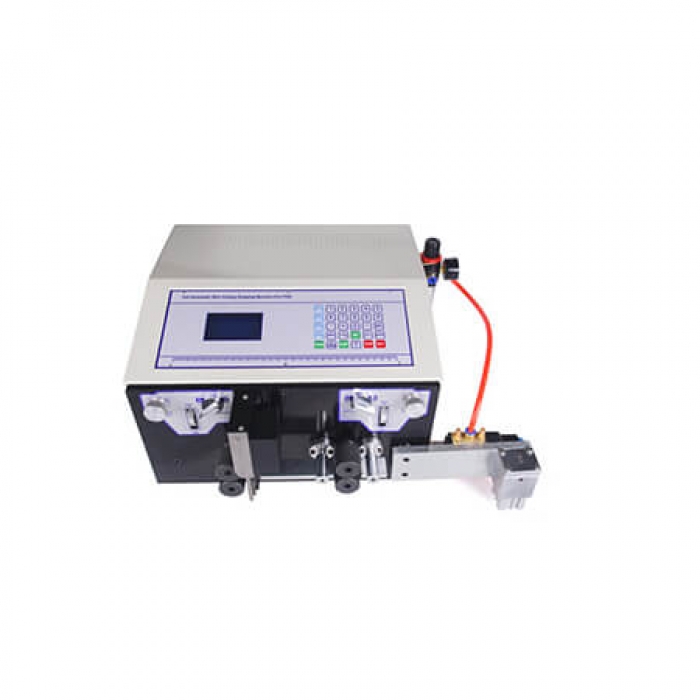

Flat Cable Stripping Splitting Machine CSC-508PX2
Features
This is our newest flat cable stripping and splitting machine, it's designed for processing flat ribbon cables with Max. 20mm width, it's able to process same gauge different rows cable without any blade changes, splitting length can be set in program easily.
