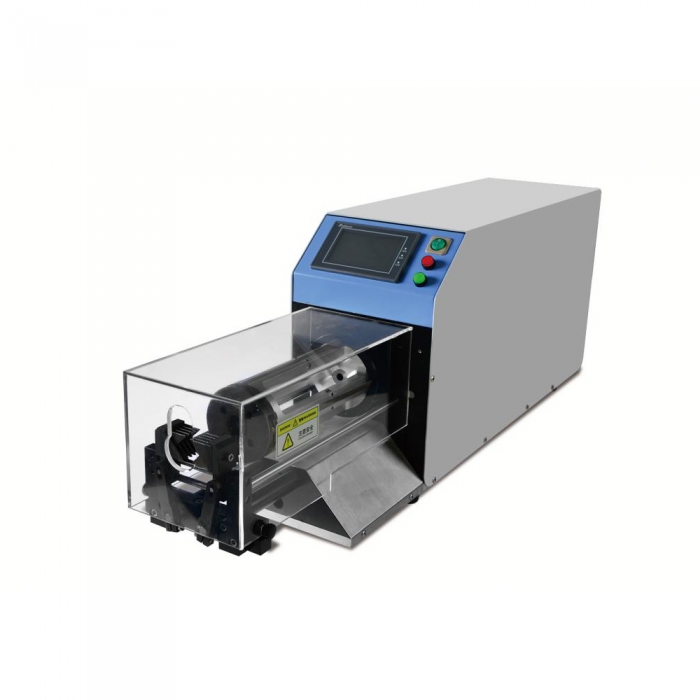

Charger Battary Cables Peeling Machine TZB-2520

Wire Range Ø5mm-Ø25mm
Max. Stripping Layers 9 layers
Unit cutting depth 0.01mm
Stripping Length 0.5~200mm
Power Supply AC220V/110V 50/60HZ ,800W
Weight 55kg
Dimension 1000*225*400mm
Description
Charger Battary Cables Peeling Machine TZB-2520
Also called charger battary cable peeling unit,charger battary cable peeling equipment,charger
battary cable peeling unit.Manufacturer is Cheers Electronic Technical Co.,LTD.

1. Applicable to the peeling of various flexible and semi-flexible coaxial cables, charger cables,battary cables, medical wires, etc. in the communication industry and medical automobile industry,electric car cable, with neat stripping and precision without damaging the conductor;
2.  Easy to understand operation, can remove insulation to 9 layers, can store up to 99 sets of processing data;
3. Rotary Knifes, four-piece rotary blades design and exquisite structure improve the stability of stripping and the working life of the blades;
