| Cutting length:1mm-9.9mm |
| Stripping length:1mm-50mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:6-60 mm²(D.O.11-17mm) |
| Wire material:Four-wheel drive, independent drive box driver |
| Power:AC220V+/-10%,50/60HZ,300W |
| Air source:0.2-0.4MPa |
| Productivity:600pcs/hour （L=100mm, A=B=3mm） |
| Dimensions:620mm*370mm*420mm |
| Weight:110kg |

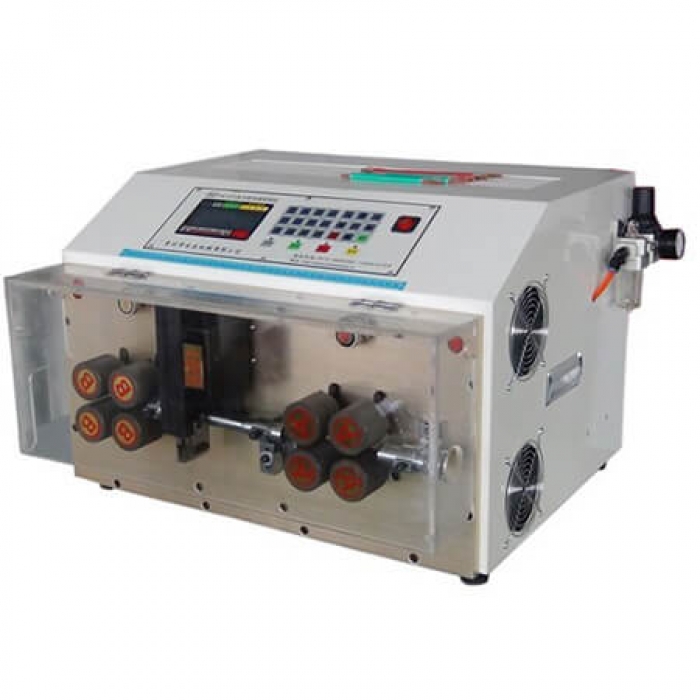

Cable cutting and stripping machine CSC-520
Also named cable cutting machine, cable stripping machine.
It's used called big cable cutting and stripping machine.
Features:
For the power industry, electric control cabinet, battery box line.
It can make the whole coil of wire according to the required length, stripping head is choppepeeled, thus greatly improving the efficiency of.
Wire range reaches up to 120mm
| Specifications: | |
| Cutting length: | 1mm-9.9mm |
| Stripping length: | 1mm-50mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | 6-60 mm²(D.O.11-17mm) |
| Wire material: | Four-wheel drive, independent drive box driver |
| Power: | AC220V+/-10%,50/60HZ,300W |
| Air source: | 0.2-0.4MPa |
| Productivity: | 600pcs/hour （L=100mm, A=B=3mm） |
| Dimensions: | 620mm*370mm*420mm |
| Weight: | 110kg |
| Delivery Information: | |
| Package: | 110kg |
| Dimension: | 620mm*370mm*420mm |
| Net Weight: | 110kg |
| Gross Weight: | 120kg |
| Port of Loading: | China |
| Production Cycle: | 7 working days |
| Transport time: | 5 days to EL PASO by air |
