| Cutting length:0.1mm-9.9mm |
| Stripping length:0.1mm-13mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:AWG34-AWG18 |
| Wire material:PVC，TEFLON, Fiberglass Wire |
| Power:AC220V+/-10%,50/60HZ,260W |
| Air source:0.2-0.4MPa |
| Productivity:90pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions:418mm*358mm*308mm |
| Weight:25kg |

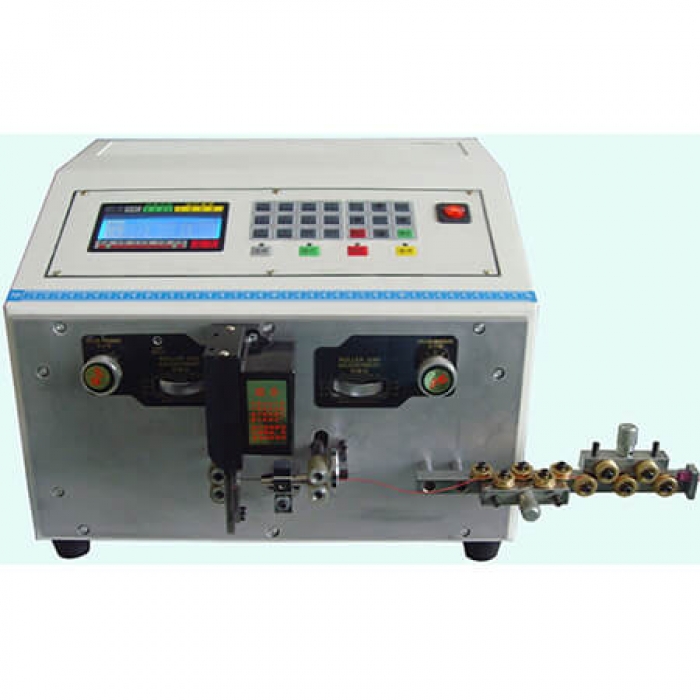

Cable cut and strip machine CSC-504
Also namedideal wire strippers machine,wirecut machine,copper wire strippers machine
Features:
Intellectual computer control system with time delaying function to tie the bundles.
With Quick and easy keyboard operation, freely setting for cutting length and wire stripping length.
Excellent price to performance ratio, economical & practical, low failure rate.
Special for high-precision thin and short wire processing.
CSC-504 adopts Segmentation fine-tuning to adjust the gap of two rollers, that ensures high-precision (reaches up to 0.05mm) and alleviates or eliminates dimpling defects.
| Specifications: | |
| Cutting length: | 0.1mm-9.9mm |
| Stripping length: | 0.1mm-13mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | AWG34-AWG18 |
| Wire material: | PVC，TEFLON, Fiberglass Wire |
| Power: | AC220V+/-10%,50/60HZ,260W |
| Air source: | 0.2-0.4MPa |
| Productivity: | 90pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions: | 418mm*358mm*308mm |
| Weight: | 25kg |
| Delivery Information: | |
| Package: | 25kg |
| Dimension: | 605mm*625mm*445mm (0.17 cdm) |
| Net Weight: | 25kg |
| Gross Weight: | 28kg |
| Port of Loading: | China |
| Production Cycle: | 7 working days |
| Transport time: | 5 days to EL PASO by air |
