| Cutting length:0.5mm-9.9m |
| Stripping length:front end：0.5-100mm, rear end：0.5-40mm |
| Cutting Tolerance:±（0.5+0.002*L）mm |
| Wire Range:AWG4-AWG12 |
| Wire material:PVC，TEFLON, Fiberglass Wire |
| Power:AC220V+/-10%,50/60HZ,450W |
| Air source:0.4-0.6 MPa |
| Productivity:39pcs/min （L=100mm, A=B=5mm,AWG18） |
| Dimensions:560mm*530mm*370mm |
| Weight:50kg |

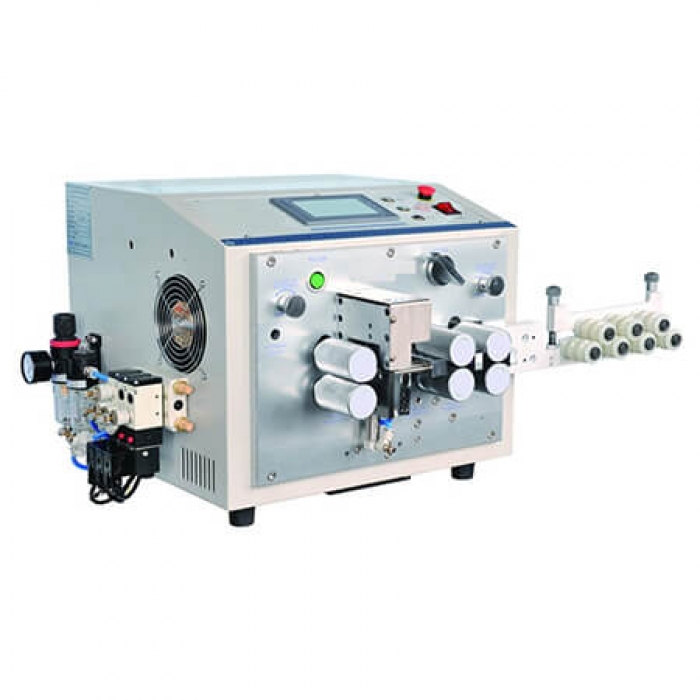

Cable cut and strip machine CSC-5025
Also named automatic peeling machine,cable cutter machine
Features:
Pneumatic roller lifting, pneumatic pressurization, manual torsion spring rotation for the fine adjustment of roller gap.
CSC-5025 could process 2 wires at a go.
The widest wire diameter reaches up to 11mm.
Specifications:
Cutting length:
0.5mm-9.9m
Stripping length:
front end：0.5-100mm, rear end：0.5-40mm
Cutting Tolerance:
±（0.5+0.002*L）mm
Wire Range:
AWG4-AWG12
Wire material:
PVC，TEFLON, Fiberglass Wire
Power:
AC220V+/-10%,50/60HZ,450W
Air source:
0.4-0.6 MPa
Productivity:
39pcs/min （L=100mm, A=B=5mm,AWG18）
Dimensions:
560mm*530mm*370mm
Weight:
50kg
Delivery Information:
Package:
50kg
Dimension:
650mm*600mm*540mm (0.21 cdm)
Net Weight:
50kg
Gross Weight:
56kg
Port of Loading:
China
Production Cycle:
7 working days
Transport time:
5 days to EL PASO by air
