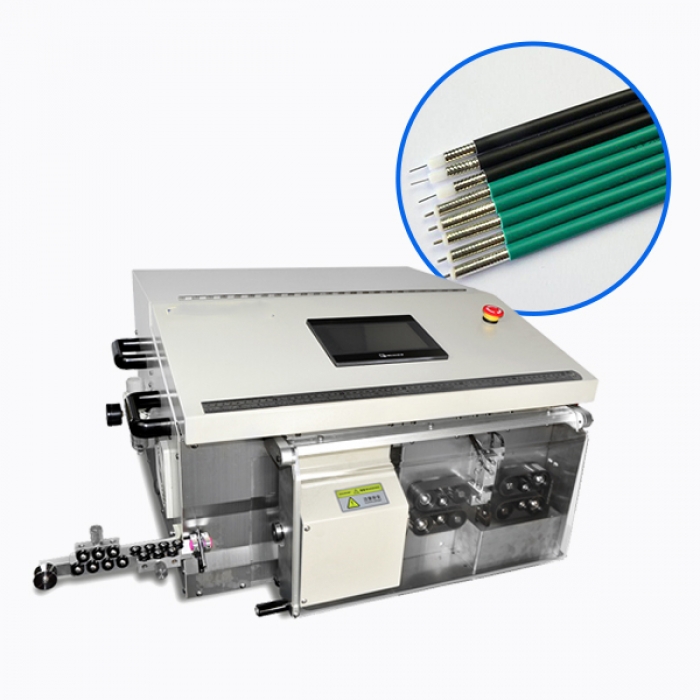

Auto RG6 Cable Stripping Machine CLB-9600S

Cutting capacity: 50mm-9999mm
Wire diameter: Ø1.0-Ø5.5mm (unto Ø2.0-Ø9.0mm)
Cutting depth unit: 0.01mm
Productivity: 300-850PCS / h (depending on cutting length)
Maximum stripping length: front end 0-120mm, rear end 0-45mm
Maximum stripping layers: 6 layers
Dimensions: 790 * 730 * 400mm
Weight: 120kg
Power supply: AC220V/110V / 50 / 60HZ
Power: 800W

Description
Auto RG6 Cable Stripping Machine CLB-9600S

Used to strip and cut coaxial cable, RF cable.
Features:
1. Suitable for semi-flexible and flexible antenna coaxial cable, with special requirements for single core wire processing;
2. The advanced rotary blades head combined with the mobile tool holder (cutting knife, stripping knife) enables complex processing of various types of wire materials to be stripped at one time, without the need to replace the blade, and the quality and efficiency are more perfect.
3. The special center positioning device and wire feeding device make the processing more precise and meet the high requirements of the communication industry.
4. Up to 100 sets of storage capacity, so that all kinds of processing data can be completely saved and retrieved at any time.
