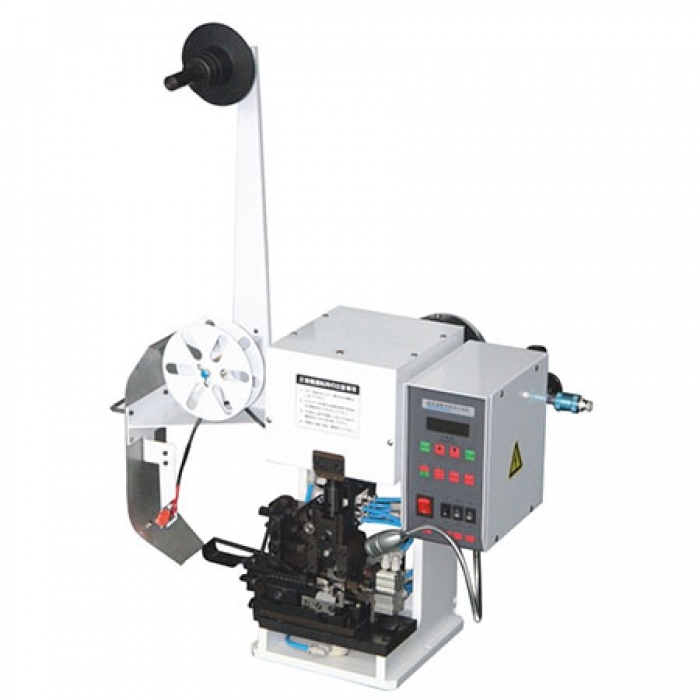

Wire Stripping Crimping Tool TFP-1.5SC

wire stripping crimping tool TFP-1.5SC

Also named wire stripping crimping tool TFP-1.5SC machine,wire stripping crimping tool TFP-1.5SC device,wire stripping crimping tool TFP-1.5SC equipment,wire stripping crimping tool TFP-1.5SC tool. -Cheers Electronic Technical Co., LTD

Features:

Precise compact mechanical structure make more stable and accuracy. Use SCA special made applicator, be able to process wire size up to AWG 36 or more.
Technical specificaitons

Wire Size AWG18-36(0.05-0.85mm2）
Applicable wire AV,AVS,AVSS,CAVUS,KV,KIV,UL,IV
Stroke 30mm
Crimping Force 1.5T
Stripping Length 1.0-7.0mm
Power AC220V-240V,50/60Hz
Air source 0.3- 0.4mpa
Dimensions 530 mm x 400 mm x 830 mm
Weight 85 kg


video
