Thewirecutter CSC-608MAX2

Description

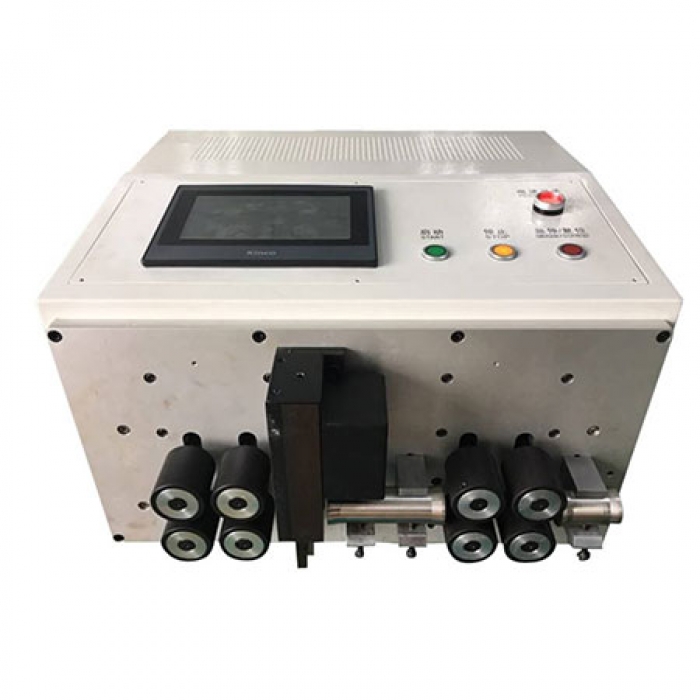

thewirecutter CSC-608MAX2

Heavy duty wire cut strip machine CSC-600MAX2

70 sqmm wire cut strip machine CSC-600MAX2

The heavy duty wire stripping machine is especially designed for processing large gauge wires and big diameter cables, it's able to process up to 70mm2 wires and Max. 25mm O.D. cables.

wire sizes: 4-70 sqmm

Max diameter: 25 mm

Cutting Length: 1 ~ 99999mm

Stripping Length: Head 0~999mm, End 0~70mm

Memory Function: Can store Max. 100 group programs

Max. Middle Stripping Section: 16

Cutting Tolerance: 0.002×L(L=Cutting Length)

Wire material: PVC, Teflon, Fiberglass cable, etc.

Speed: 3000-6000pcs/hour

Display: English LCD dispaly

Drive Mode: eight wheel drives

Blade Material: Hard tungsten steel

Power Supply: 220V±10% /50Hz

Power Rating: 600W

Dimensions:600*420*520mm

Gross Weight:100KG


thewirecutter CSC-608MAX2
