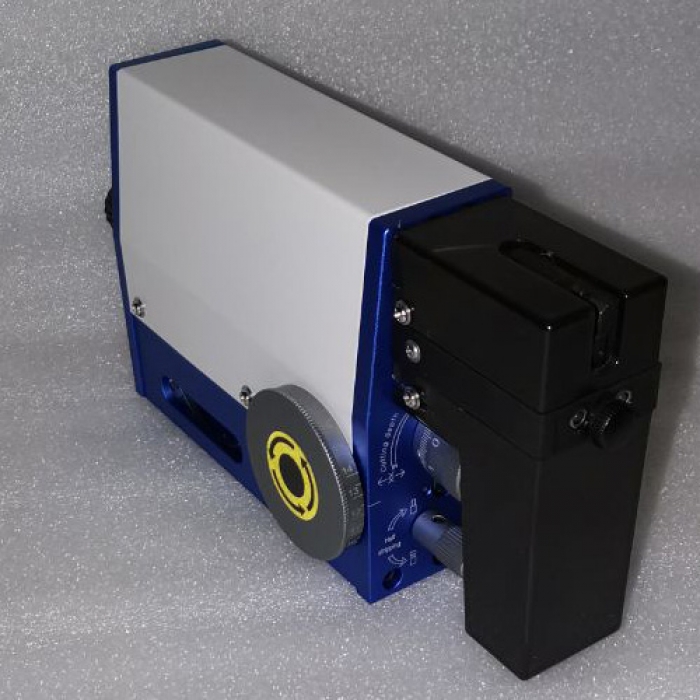

Insulated Wire Strippers QS-2015C

Wire Size Range 0.03 – 2.08 mm² (32 – 14 AWG)
Max. Outer Cable Diameter 3.2 mm
Stripping Length  Full strip: 0.5mm  Partial strip: 2 mm
Precision of Diameter Setting 0.01 mm
Max. Strip Length 20 mm
Cycle Timeapprox. 0.3 s
Dimensions (L x W x H)  273 x 72 x 137mm
Air pressure: 0.7-0.8MPa
WeightNet 2.0 kg
Description

QS-2015C wire stripper pliers industrial wire strippers

Also named QS-2015C insulated wire stripper pliers, QS-2015C insulated wire stripper machine, QS-2015C insulated wire stripper device, QS-2015C insulated wire stripper equipment.

Application
The QS2015C has been proven thousands of times over to process wires and cables. The machine operates with extremely fast cycle times and feature a universal blade system that eliminates time consuming changeovers. Absolute precision, high cost effectiveness, and a very short return of investment are the main characteristics of this machine. The compact and slender design allows for several units to be used on one workstation and has proven most efficient particularly when processing wire harnesses and multi-core cable
A simple solution
The pneumatically operated QS2015C stripping machine excels with its compact design, fast cycle times and infinite settings for conductor diameters, stripping -and pull-off lengths.
Technical specificaitons
Wire Size Range 0.03 – 2.08 mm² (32 – 14 AWG)
Max. Outer Cable Diameter 3.2 mm
Stripping Length IncrementsFull strip: 0.5 mm , Partial strip: 2 mm
Precision of Diameter Setting0.01 mm
Max. Strip Length20 mm
Cycle Timeapprox.0.3 s
Dimensions (L x W x H) 273 x 72 x 137mm
WeightNet2.0 kg
Gross2.4 kg
