| Model ACM-02A |
| Power AC 220V/50/60Hz |
| Function cutting wire, single end stripping, both ends stripping, single end crimping, single end twisting, single end tinning |
| Productivity 6000-8000pcs/hour |
| Wire size AWG#24-AWG#18, AWG#24-AWG#32, |
| cutting length 10 mm--600 mm( replacing some optional parts the shortest cutting length can be changed to 8 mm) |
| Cutting Tolerance: 0.2 mm±0.02*L |
| Stripping length 0--7 mm |
| Twisting length 3--7 mm |
| Tinning length 0.5--7 mm |
| Press Capacity 2.0T |
| Air pressure 0.5-0.7MPA |
| Dimensions: 1210W×770L×1370H(mm) |
| Weight: 450kg |

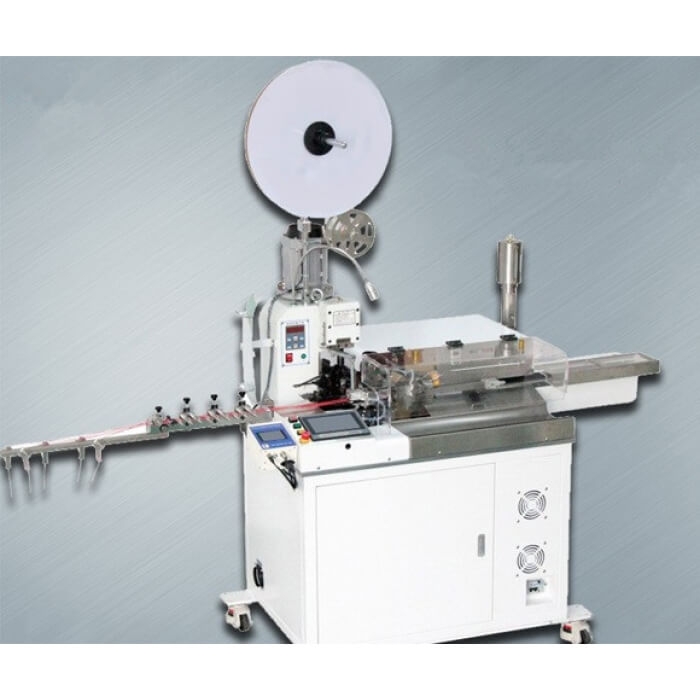

Fully automatic crimping and tinning wire machine ACM-02A
is also named automatic crimping wire device, automatic crimping wire equipment,automatic crimping wire machinery.
The compact designed makes the machine structure tightly packed, cleverly made, less occupied area.
Easy computer touch screen operation
Change procedure and material quick.
Efficiently of the stepping drive, high definition and speed
Simply maintenance
High Cost Performance
| Model | ACM-02A |
| Power | AC 220V/50/60Hz |
| Function | cutting wire, single end stripping, both ends stripping, single end crimping, single end twisting, single end tinning |
| Productivity | 6000-8000pcs/hour |
| Wire size | AWG#24-AWG#18, AWG#24-AWG#32, |
| cutting length | 10 mm--600 mm( replacing some optional parts the shortest cutting length can be changed to 8 mm) |
| Cutting Tolerance: | 0.2 mm±0.02*L |
| Stripping length | 0--7 mm |
| Twisting length | 3--7 mm |
| Tinning length | 0.5--7 mm |
| Press Capacity | 2.0T |
| Air pressure | 0.5-0.7MPA |
| Dimensions: | 1210W×770L×1370H(mm) |
| Weight: | 450kg |
