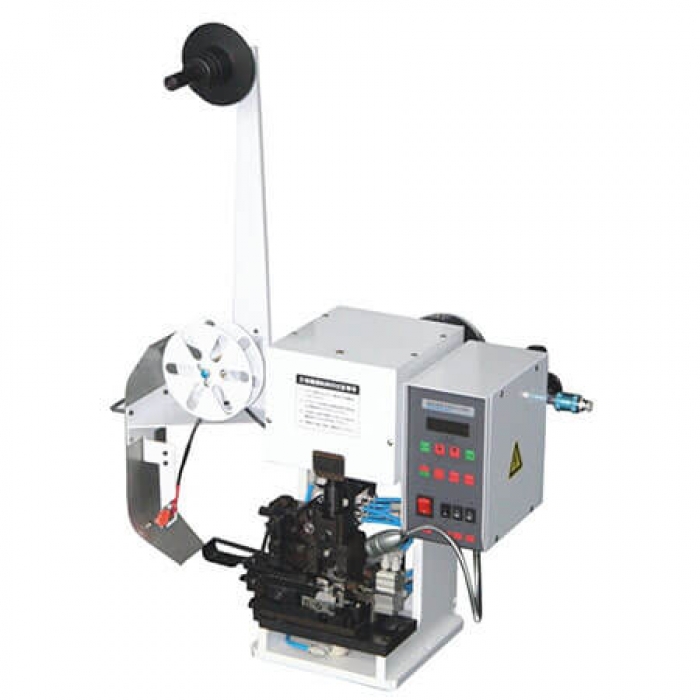

Electronic Wire Stripper Crimp TFF-1.5SC

electronic wire stripper crimp TFF-1.5SC

Also named electronic wire stripper crimp device TFF-1.5SC, electronic wire stripper crimp unit TFF-1.5SC, electronic wire stripper crimp equipment TFF-1.5SC

Features:

Precise compact mechanical structure make more stable and accuracy.

Use SCA special made applicator, be able to process wire size up to AWG 36 or more.

Technical specificaitons

Wire Size AWG18-36(0.05-0.85mm²）

Applicable wire AV,AVS,AVSS,CAVUS,KV,KIV,UL,IV

Stroke 30mm

Crimping Force 1.5T

Stripping Length 1.0-7.0mm

Power AC220V-240V,50/60Hz

Air source 0.3-0.4mpa

Dimensions 530 mm x 400 mm x 830 mm

Weight 85 kg
