| Wire Size AWG18-30(0.05-0.85mm²） |
| Stroke 30mm |
| Crimping Force 1.5T |
| Stripping Length 2.0-4.0mm |
| Power AC220V,50/60Hz |
| Air source 0.5-0.7Mpa |
| Dimensions 375 mm x 365 mm x 435 mm |
| Weight 110 kg |

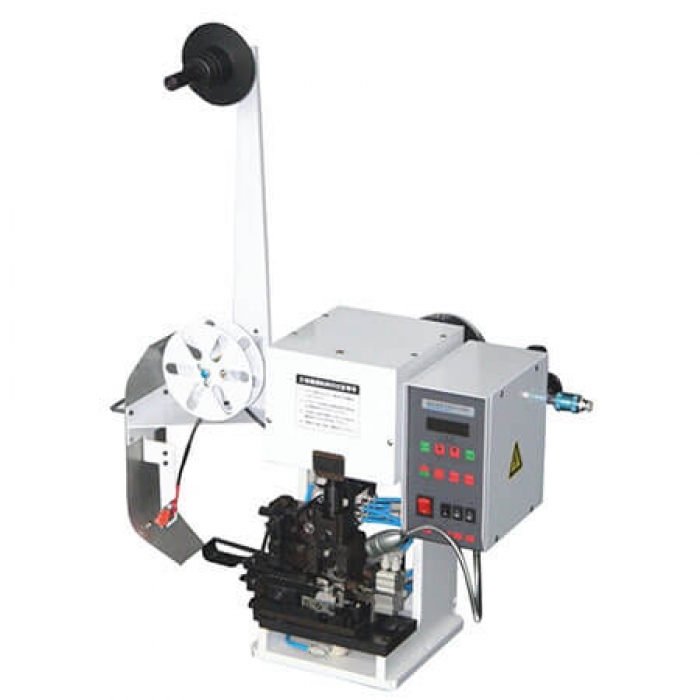

electric wire stripping tool crimp TFP-1.5SC
Also named electric wire stripping tool crimp device TFF-1.5SC, electric wire stripping tool crimp unit TFF-1.5SC, electric wire stripping tool crimp equipment TFF-1.5SC
Features:
Precise compact mechanical structure make more stable and accuracy.
Use SCA special made applicator, be able to process wire size up to AWG 36 or more.
Technical specificaitons
Wire Size AWG18-36(0.05-0.85mm²）
Applicable wire AV,AVS,AVSS,CAVUS,KV,KIV,UL,IV
Stroke 30mm
Crimping Force 1.5T
Stripping Length 1.0-7.0mm
Power AC220V-240V,50/60Hz
Air source 0.3-0.4mpa
Dimensions 530 mm x 400 mm x 830 mm
Weight 85 kg
Also named electric wire stripping tool crimp device TFF-1.5SC, electric wire stripping tool crimp unit TFF-1.5SC, electric wire stripping tool crimp equipment TFF-1.5SC
