wire sizes: 4-70 sqmm
Max diameter: 25 mm
Cutting Length: 1 ~ 99999mm
Stripping Length: Head 0~999mm, End 0~70mm
Memory Function: Can store Max. 100 group programs
Max. Middle Stripping Section: 16
Cutting Tolerance: 0.002×L（L=Cutting Length)
Wire material: PVC, Teflon, Fiberglass cable, etc.
Speed: 3000-6000pcs/hour
Display: English LCD dispaly
Drive Mode: eight wheel drives
Blade Material: Hard tungsten steel
Power Supply: 220V±10% /50Hz
Power Rating: 600W
Dimensions:600*420*520mm
Gross Weight:100KG

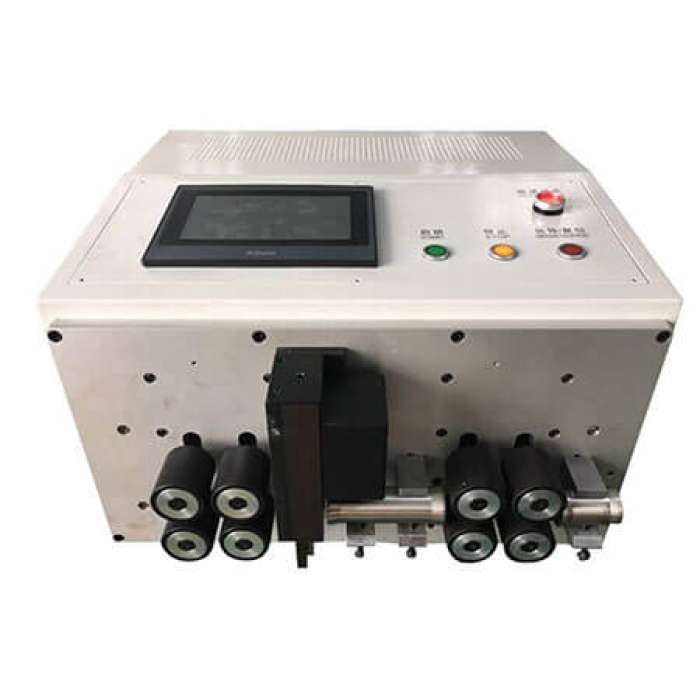

electric automatic wire stripper cutting machine CSC-608MAX2
The heavy duty wire stripping machine is especially designed for processing large gauge wires and big diameter cables, it's able to process up to 70mm2 wires and Max. 25mm O.D. cables.
Features：
a. Special for the power cord, sheathed wire, large square wire stripper and cutting, it's electric automatic machine.
b. Function: half-strip, full-strip, mid-strip.
c.The new 8-wheel design makes the machine output more stable and smooth, and minimizes the machining error.
d.Chinese and English display, easy to understand.
e. It can store 99 kinds of processing information, which greatly reduces the waste of materials during adjusting and shortens the adjusting time.
