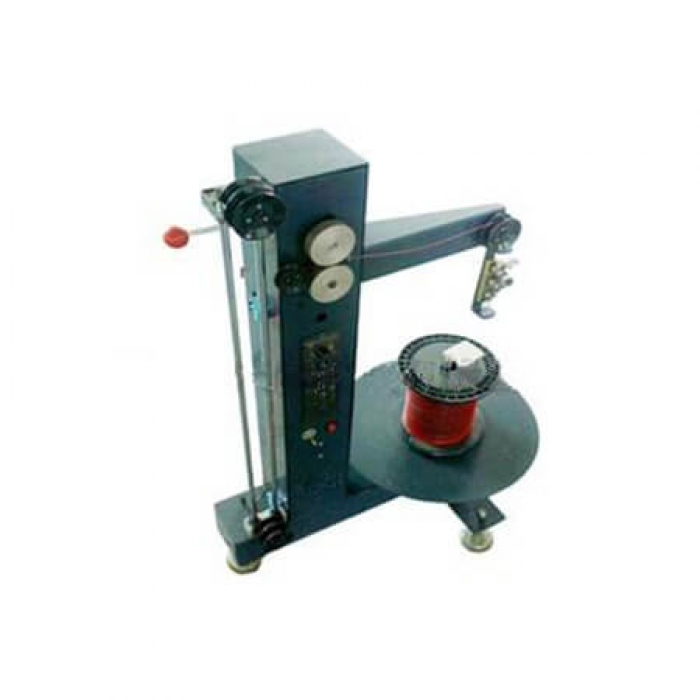

Wire Feeder System QSFX-50

Feed speed MAX 250m/min(Adjustable )
Spool weight 300KG
Power 220V,90W
Dimensions 600 × 400 × 850mm
Weight 300KG
Max. Wire Weight 50KG
APPLICATION RANGE Not matter of wire roll, without roll is also OK.
Min. ID of wire roll 30mm
Max.OD of wire roll 350mm
Description

Wire Feeder System QSFX-50

Features:

A accessory for wire harness equipment (such as cutting & stripping machines), improve the processing quality.

QSFX50 automatic wire prefeeder is provided with motor, pay off accumulator, sensor, frequency conversion. It renders stable delivery of wire to the cutter.

Function with active convey wire. (No need to pull wire by other machine)

Adjustable speed ensures more flexibility.

The less wire on the pay off accumalator, the faster speed the motor will be.

Adopts sensors control that ensures orderly work.

When the cutter stop operating, QSFX-50could be sensed automatically, and then brake, recovery the wire which was feeded (needless) by interia.

There is always 5m wire on the pay off accumulator to accomplish stable work

Specifications:
Feed speedMAX 250m/min(Adjustable )
Spool weight300KG
Power220V,90W
Dimensions600 × 400 × 850mm
Weight300KG
Max. Wire Weight50KG
APPLICATION RANGENot matter of wire roll, without roll is also OK.
Min. ID of wire roll30mm
Max.OD of wire roll350mm
Direction of rotationAdjustable (D/R Direct/Reverse)
