| Available Wire Size 0.1 - 4.5mm² (AWG12 - AWG32) |
| Conduit Diameter Φ6mm |
| Cutting Length 5 - 9999mm |
| Stripping Length Head 0 - 35mm, Tail 0 - 15mm |
| Ultra short stripping function available (Min. 5mm) |
| Memory Function Can store Max. 99 group programs |
| Max. Middle Stripping Section 11 |
| Cutting Tolerance ±(0.002×L) (L = Cutting Length) |
| Speed 3000 - 8000pcs/hour |
| Display LCD display with English menu |
| Drive Mode four wheels drive |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 220W |
| Weight 33Kg |
| Dimension 390 × 350 × 255mm |

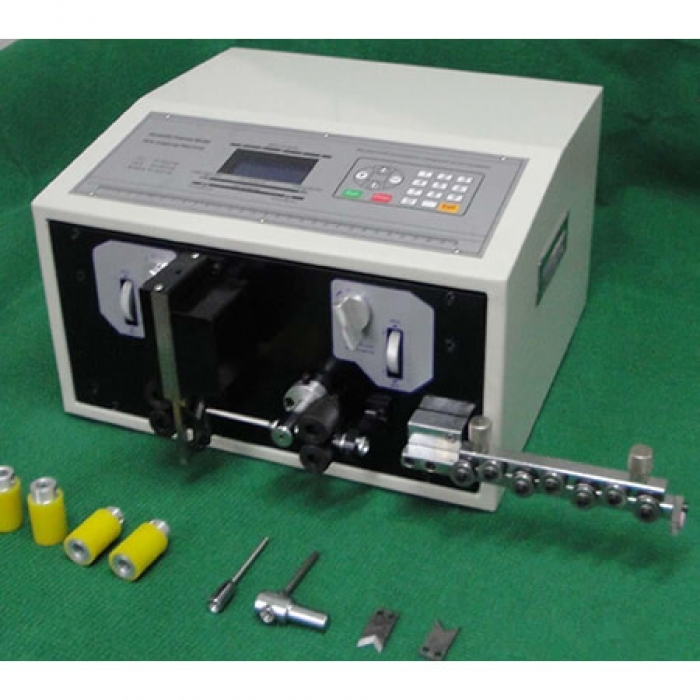

Wire Cutting Stripping Machine CSC-508SD
Features
This wire cutting stripping machine can strip both ends of wires as short as 5mm in overall lenth, it is also specially suited for processing micro wires as small as 32AWG.
It also process most wire and cable types up to 4.5mm², outstanding price/performance ratio.
Specifications
Available Wire Size 0.1 - 4.5mm² (AWG12 - AWG32)
Conduit Diameter Φ6mm
Cutting Length 5 - 9999mm
Stripping Length Head 0 - 35mm, Tail 0 - 15mm
Ultra short stripping function available (Min. 5mm)
Memory Function Can store Max. 99 group programs
Max. Middle Stripping Section 11
Cutting Tolerance ±(0.002×L) (L = Cutting Length)
Speed 3000 - 8000pcs/hour
Display LCD display with English menu
Drive Mode four wheels drive
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 220W
Weight 33Kg
Dimension 390 × 350 × 255mm
