| Available Wire Gauge 0.1 - 10.0mm² |
| Max. Conduit Diameter Φ13mm |
| Cutting Length 0 - 99999mm |
| Stripping Length Wire Head 0 - 250mm, Wire Tail 0 - 150mm |
| Middle Stripping Max. 13 sections |
| Cutting Tolerance ±(0.002×L) (L = Cutting Length) |
| Speed 3000 ~ 7000pcs/hour |
| Display LCD display with English menu |
| Memory Function Can store Max. 99 group programs |
| Special Function Can strip Max. 3 layers with different length at one time |
| Drive Method 4 wheels drive |
| Blade Material Tungsten Steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Weight 48Kg |

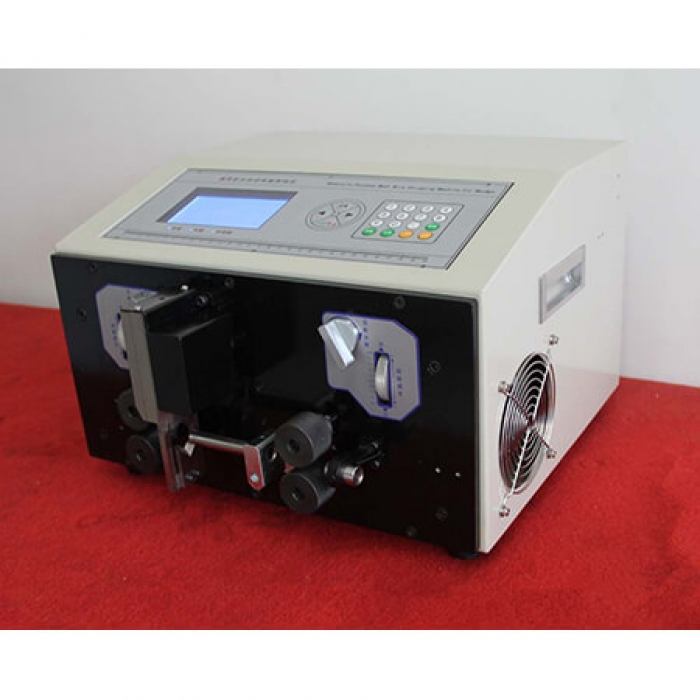

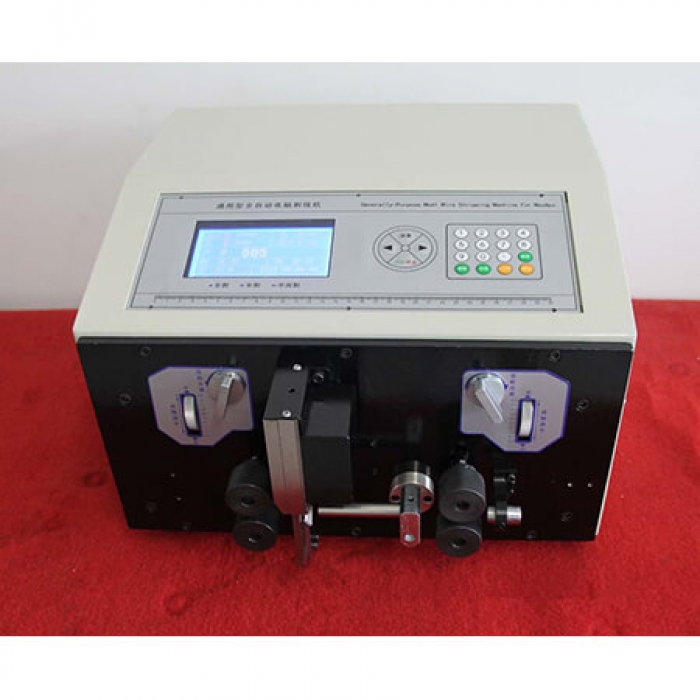

Round multi-cire Cable Stripping Cutting Machine CSC-508HT2
Used to strip the outer jacket and cut the cable
Features
The cable stripping cutting machine combines the utmost in precision and performance which cover an unbeatable range of application possibilities, it is designed for stripping the jacket of multi conductor cables with a stripping length up to 250mm, the coaxial stripping function allows Max. 3 steps stripping, it also process most wire and cable types up to 10mm², wide range of processing possibilities that include discrete wire, multi conductor cable, coaxial cable and flat sheathed cable, excellent function and high price/performance ratio.
