| Model: AM-6-4 |
| Range of Application: 0.08-6mm² |
| Output force: 13.5KN |
| Applicable air pressure: 0.4-1Mpa |
| Dimension: 260mm*120mm*140mm |
| Weight: 5kg |

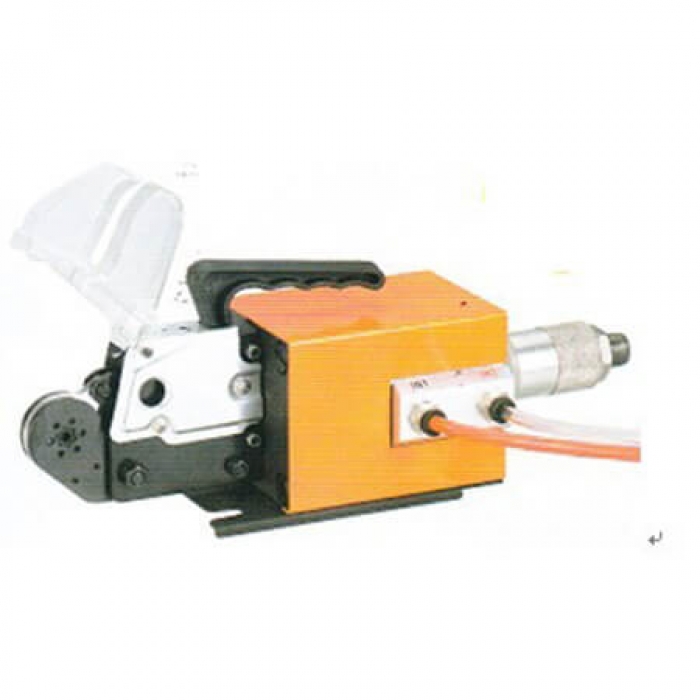

Pneumatic manual crimping toolAM6-4
Also named crimping tool, pex crimp tool, manual crimping tool
Features:
Adopts dual-action normal cylinder, which realize stable crimping force and speed.
The best choice for crimping tubular insulated Terminals.
Since the square can be adjusted flexible.
After crimping, the terminals look beautiful in Hexagon without any flash edge.
Accessories:
one foot air valve, two air pipes.
| Specifications: | |
| Model: | AM-6-4 |
| Range of Application: | 0.08-6mm² |
| Output force: | 13.5KN |
| Applicable air pressure: | 0.4-1Mpa |
| Dimension: | 260mm*120mm*140mm |
| Weight: | 5kg |
