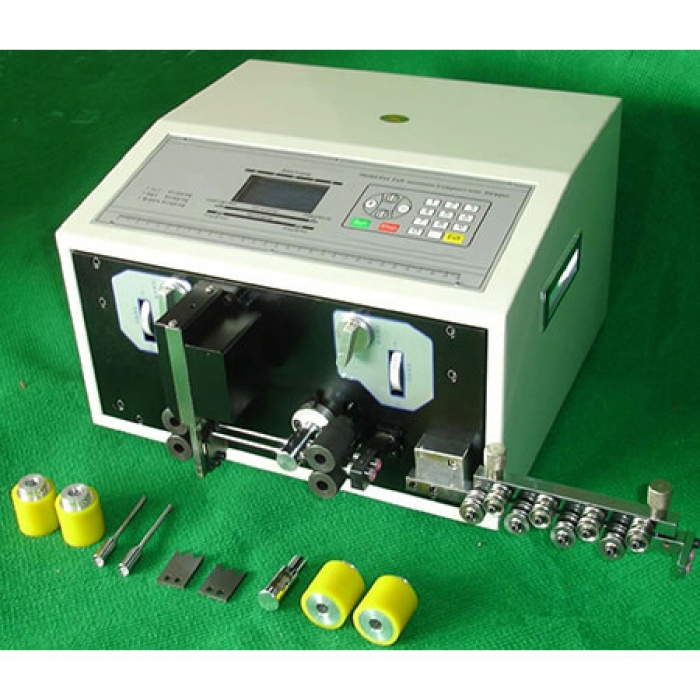

High Speed Wire Stripping Machine CSC508-SDB
Features
This wire stripping machine has a very high output rate due to double cut system.
it easily handles very short overall lenths down to 5mm with both side stripping.
it also efficiently and precisely process multi strand wires up to Max. 2.5mm², excellent price/performance ratio.
Specifications
Available Core Cross-Section Range 0.1 - 2.5mm² (AWG12 - AWG32)
Max. Conduit Diameter Φ6mm
Cutting Length 5 ~ 9999mm
Stripping Length Head 0~35mm, End 0~15mm
Ultra short stripping function available (Min. 5mm)
Program storage function can store Max. 99 programs
Max. Middle Stripping Section 11
Cutting Tolerance ±(0.002×L) （L=Cutting Length)
Speed5000~15000pcs/hour
Display Way English LCD display
Drive Mode Four wheel drives
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 180W
Weight 34Kg
