| Available Core Cross-Section Range 0.1 - 4.5mm² |
| Max. Pipe Diameter 100x8x6mm |
| Cutting Length 0 ~ 60000mm |
| Stripping Length Head 0~150mm, End 0~100mm |
| Max. Middle Stripping Section 13 places (2 places stripping length can be set independently) |
| Motor Step Angle Accuracy 3-phase 6 shot 1.5/3 |
| Cutting Tolerance ±(0.002×L) （L=Cutting Length) |
| Speed 4000~7000pcs/hour |
| Display Way English LCD display |
| Drive Mode 4 Drives |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 220W |
| Dimension 420 × 390 × 280mm |

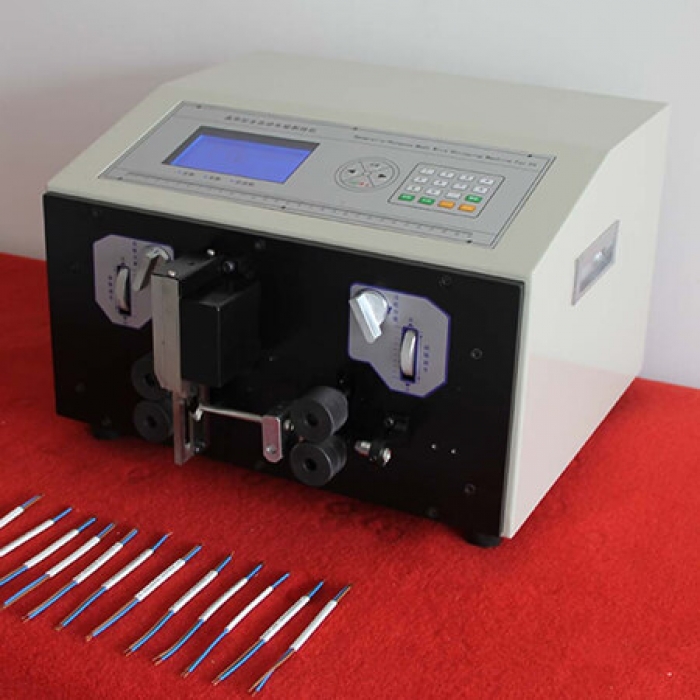

Flat Sheathed Cable Stripping Machine CSC-508BHT2
Features
The flat sheathed cable stripping machine is especially designed for cutting and stripping flat sheathed cables, it can strip the outside jacket and inner conductor at one time, once the values for a particular cable and job are stored in memory, they can be retrieved in seconds.
Specifications
Available Core Cross-Section Range 0.1 - 4.5mm²
Max. Pipe Diameter 100x8x6mm
Cutting Length 0 ~ 60000mm
Stripping Length Head 0~150mm, End 0~100mm
Max. Middle Stripping Section 13 places (2 places stripping length can be set independently)
Motor Step Angle Accuracy 3-phase 6 shot 1.5/3
Cutting Tolerance ±(0.002×L) （L=Cutting Length)
Speed 4000~7000pcs/hour
Display Way English LCD display
Drive Mode 4 Drives
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 220W
Dimension 420 × 390 × 280mm
