| Available Core Cross-Section Range 0.1 - 8.0mm² |
| Max. Conduit Diameter Φ8.0mm |
| Cutting Length 0 ~ 65000mm |
| Stripping Length Head 0~99mm, End 0~70mm |
| Max. Middle Stripping Section 13 places (2 places stripping length can be set independently) |
| Motor Step Angle Accuracy 3-phase 6 shot 1.5/3 |
| Cutting Tolerance ±(0.002×L) （L=Cutting Length) |
| Speed 3000~7000pcs/hour |
| Display Way English LCD display |
| Drive Mode 4 Drives |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 220W |
| Dimension 420 × 390 × 280mm |

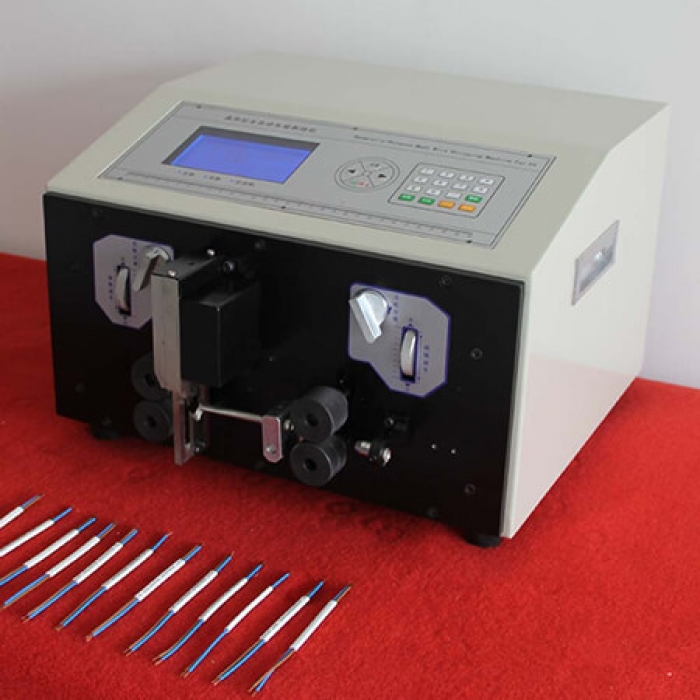

Flat Sheathed Cable Stripping Machine CSC-508BHT
Features
The flat sheathed cable stripping machine is especially designed for cutting and stripping flat sheathed cables, it can strip the outside jacket and inner conductor at one time, once the values for a particular cable and job are stored in memory, they can be retrieved in seconds.
