Available Wire Width: various flat wires within 40pins |
|
Available Wire O.D.: 0.9-2.5mm |
|
Available Wire Gauge: 14AWG - 28AWG |
|
Available Wire length: ≥60mm |
|
Crimping Force: 1.5 Ton |
|
Display: Touch Screen |
|
Speed: 11000-13000 pcs/hour |
|
Air Pressure: 0.4MPa - 0.6MPa |
|
Power Supply: 220V,50/60HZ |
|
Gross Weight: 200Kg |
|
Dimension: 900 × 1500 × 600mm |

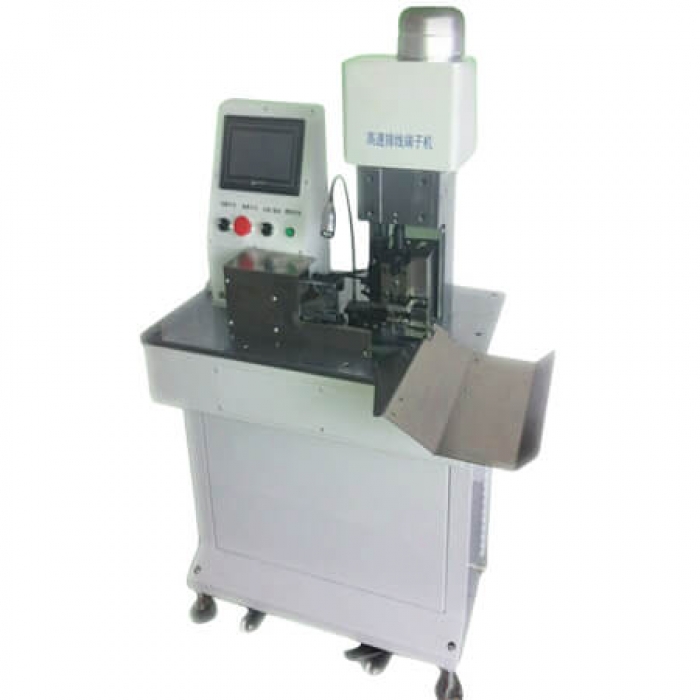

Flat Ribbon Cable Crimper TFP-P156
Features:
The flat ribbon cable crimping machine is especially designed for crimping terminals on each conductor of ribbon cable, the cable must be striped and splitted before using this machine, the operator only need to put the wire into the crimping position, the other work can be finished automatically.
