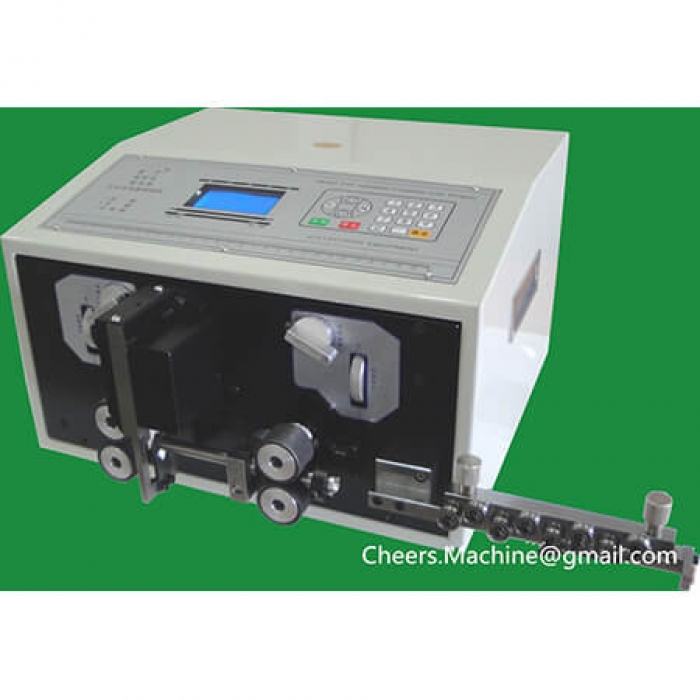

Digital Wire Cutting And Stripping Machine CSC-508JE

Available Core Cross-Section Range 0.1 - 8.0mm² (AWG9 ~ AWG32)
Conduit Diameter Φ8mm
Cutting Length 5 ~ 9999mm
Stripping Length Head 0~50mm, End 0~50mm
Memory Function Can store Max. 99 group programs
Max. Middle Stripping Section 11
Cutting Tolerance ±(0.002×L) L=Cutting Length)
Speed 3000~8000pcs/hour
Display Way English LCD display
Drive Mode Four wheel drives
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 220W
Weight 35Kg
Dimension 390 × 350 × 255mm
Description

Digital wire cutting and stripping machine CSC-508JE(0-8mm²)

Features:

The automatic wire stripping machine accurately process wires with cross section up to 8mm².

support full stripping, half stripping, middle stripping and ultra short stripping, for entire range of wire types and diameters without any blade change.

Specifications

Available Core Cross-Section Range 0.1 - 8.0mm² (AWG9 ~ AWG32)

Conduit Diameter Φ8mm

Cutting Length 5 ~ 9999mm

Stripping Length Head 0~50mm, End 0~50mm

Memory Function Can store Max. 99 group programs

Max. Middle Stripping Section 11

Cutting Tolerance ±(0.002×L) (L=Cutting Length)

Speed 3000~8000pcs/hour

Display Way English LCD display

Drive Mode Four wheel drives

Blade Material Hard tungsten steel

Power Supply 220V/50Hz 110V/60Hz

Power Rating 220W

Weight 35Kg

Dimension 390 × 350 × 255mm
