| wire sizes: 0.2-16 sqmm |
| Conduit Diameter Φ13mm |
| Cutting Length 5 ~ 9999mm |
| Stripping Length Head 0~50mm, End 0~50mm |
| Memory Function Can store Max. 99 group programs |
| Max. Middle Stripping Section 16 |
| Cutting Tolerance ±(0.002×L) （L=Cutting Length) |
| Speed 3000~6000pcs/hour |
| Display Way English LCD display |
| Drive Mode Four wheel drives |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 500W |
| Weight 42Kg |
| Dimension 390 × 350 × 255mm |

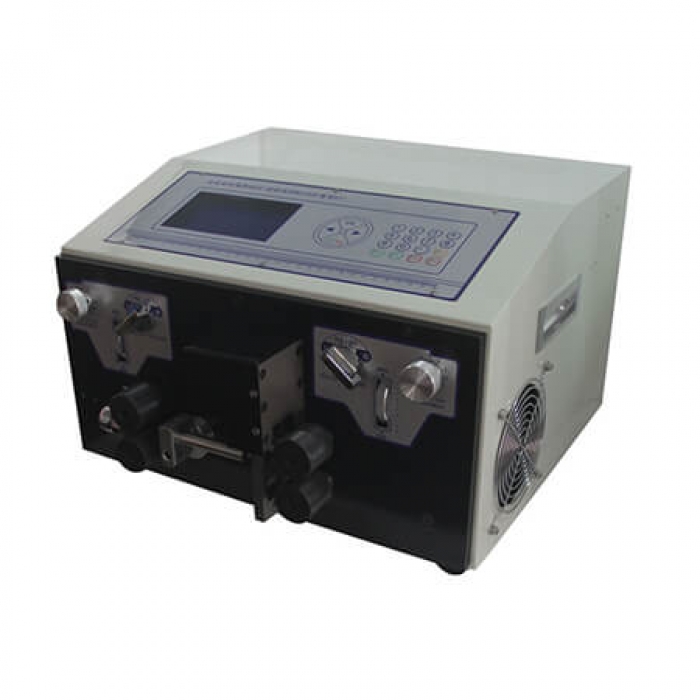

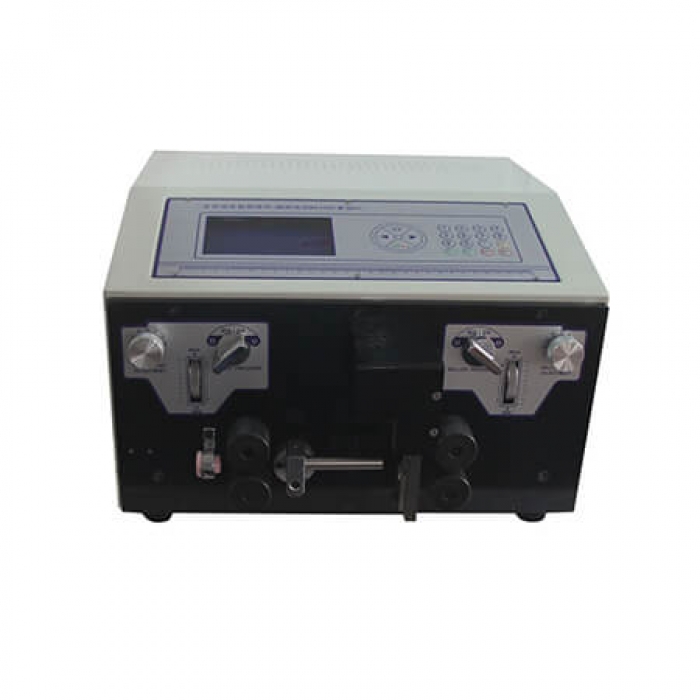

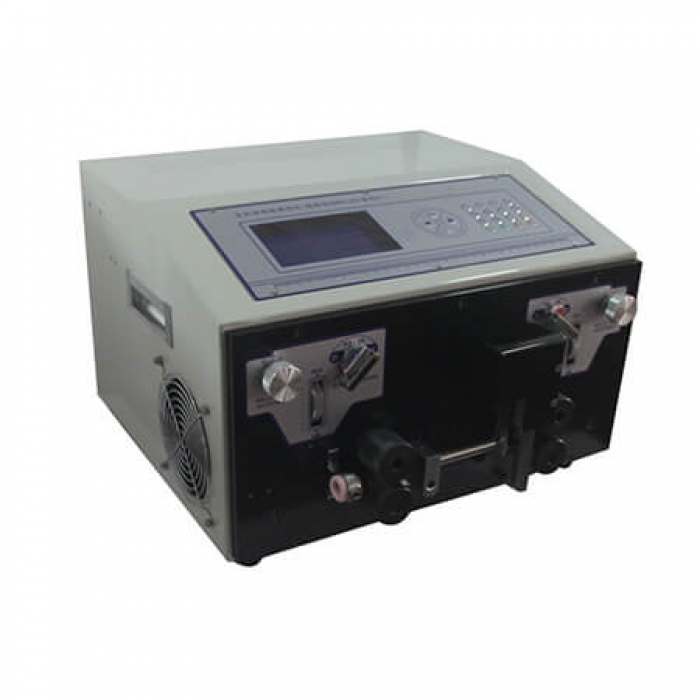

Digital wire cut strip machine CSC-508MAX
Features
This wire stripping machine is designed to cut and strip all kinds for wires with cross section up to 16mm², program memory capacity can store up to 99 programs, its wide application range and the outstanding price/performance ratio make it the ideal solution for high mix environments.
support full stripping, half stripping, middle stripping and ultra short stripping, for entire range of wire types and diameters without any blade change.
Specifications
wire sizes: 0.2-16 sqmm
Conduit Diameter Φ13mm
Cutting Length 5 ~ 9999mm
Stripping Length Head 0~50mm, End 0~50mm
Memory Function Can store Max. 99 group programs
Max. Middle Stripping Section 16
Cutting Tolerance ±(0.002×L) （L=Cutting Length)
Speed 3000~6000pcs/hour
Display Way English LCD display
Drive Mode Four wheel drives
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 500W
Weight 42Kg
Dimension 390 × 350 × 255mm
