| Wire Range Ø3mm-Ø25mm |
| Max. Stripping Layers 9 layers |
| Unit cutting depth 0.01mm |
| Stripping Length 0.5~150mm |
| Display Way Touch screen |
| Driving Mode Motor and ball screw driving |
| Stripping Method Rotating blade |
| Blade 2pcs, Material Imports Switzerland tungsten steel |
| Locating plate 2pcs, Material Imported high-speed steel |
| Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program |
| Productivity 500~700pcs/hour(according to wire length and wire material |
| Openning way Manual / Sensor/Foot switch |
| Power Supply 220V/50Hz ,630W |
| Weight 55kg |
| Dimension 920*220*400mm； |

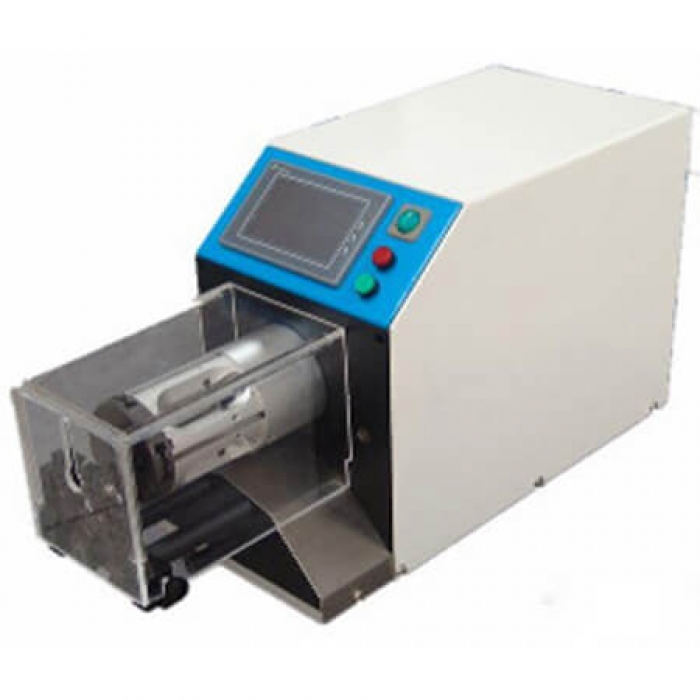

Coax cable strip machine TZB-2515
Features
Mainly used for single wire coaxial cable and special processing.
Adopts the most advanced rotary turret, with a particular axis positioning device and rotary cutter way.
Easy operation system no need to re-find the axis position when replacing blades.
Available Material coaxial cable, coaxial wire
a. strip 120 sqmm cable,
b. strip 35 sqmm cable,
Specifications:
Wire Range Ø3mm-Ø25mm
Max. Stripping Layers 9 layers
Unit cutting depth 0.01mm
Stripping Length 0.5~150mm
Display Way Touch screen
Driving Mode Motor and ball screw driving
Stripping Method Rotating blade
Blade 2pcs, Material Imports Switzerland tungsten steel
Locating plate 2pcs, Material Imported high-speed steel
Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program
Productivity 500~700pcs/hour(according to wire length and wire material
Openning way Manual / Sensor/Foot switch
Power Supply 220V/50Hz ,630W
Weight 55kg
Dimension 920*220*400mm；
