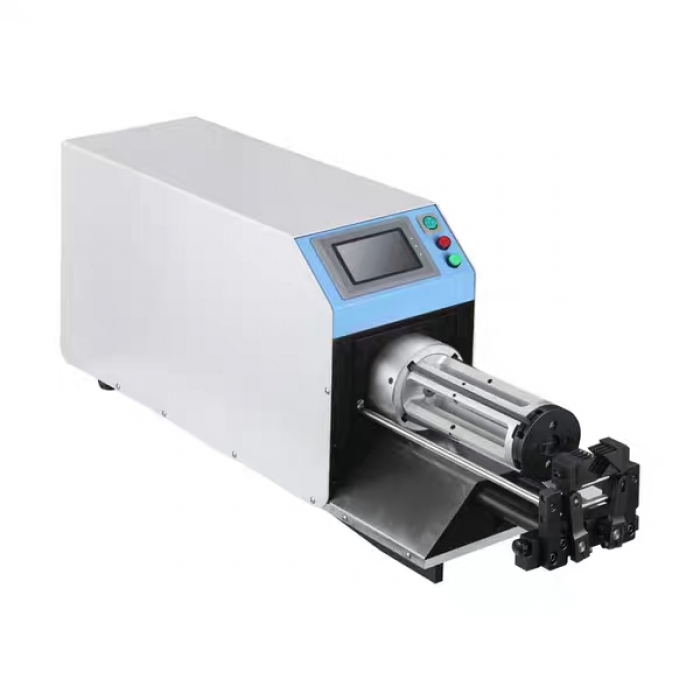

Coax Cable Strip Machine TZB-2515

Wire Range Ø3mm-Ø25mm
Max. Stripping Layers 9 layers
Unit cutting depth 0.01mm
Stripping Length 0.5~150mm
Display Way Touch screen
Driving Mode Motor and ball screw driving
Stripping Method Rotating blade
Blade 2pcs, Material Imports Switzerland tungsten steel
Locating plate 2pcs, Material Imported high-speed steel
Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program
Productivity 500~700pcs/hour(according to wire length and wire material
Openning way Manual / Sensor/Foot switch
Power Supply 220V/50Hz ,630W
Weight 55kg
Dimension 920*220*400mm;

Description

Coax cable strip machine TZB-2515


Features

Mainly used for single wire coaxial cable and special processing.

Adopts the most advanced rotary turret, with a particular axis positioning device and rotary cutter way.

Easy operation system no need to re-find the axis position when replacing blades.

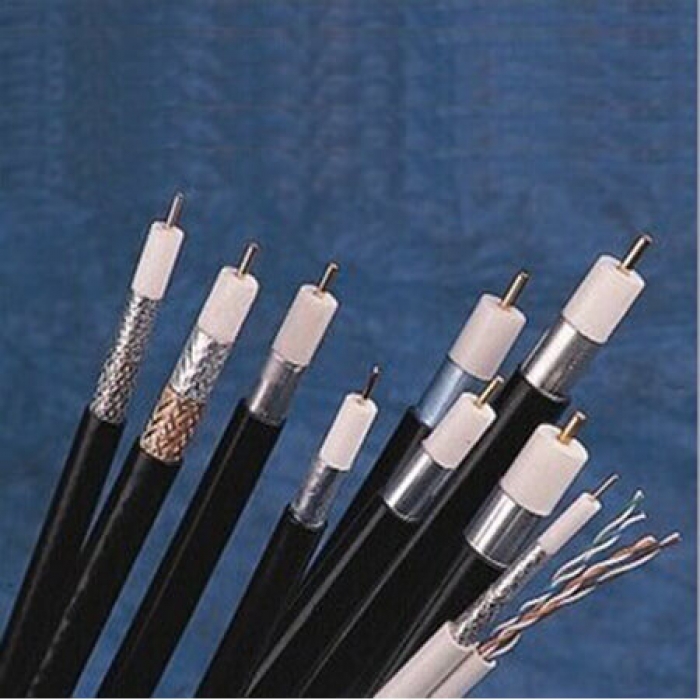

Available Material coaxial cable, coaxial wire

a. strip 120 sqmm cable,


b. strip 35 sqmm cable,




Specifications:

Wire Range Ø3mm-Ø25mm

Max. Stripping Layers 9 layers

Unit cutting depth 0.01mm

Stripping Length 0.5~150mm

Display Way Touch screen

Driving Mode Motor and ball screw driving

Stripping Method Rotating blade

Blade 2pcs, Material Imports Switzerland tungsten steel

Locating plate 2pcs, Material Imported high-speed steel

Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program

Productivity 500~700pcs/hour(according to wire length and wire material

Openning way Manual / Sensor/Foot switch

Power Supply 220V/50Hz ,630W

Weight 55kg

Dimension 920*220*400mm;
