Home Products wire stripping machine Automatic Wire Cut And Strip Machine

Cable Cut And Strip Machine CSC-RJ5025

Cutting length:0.5mm-9.9m
Stripping length:front end:0.5-100mm, rear end:0.5-40mm
Cutting Tolerance:±(0.5+0.002*L)mm
Wire Range:AWG4-AWG12
Wire material:PVC,TEFLON, Fiberglass Wire
Power:AC220V+/-10%,50/60HZ,450W
Air source:0.4-0.6 MPa
Productivity:39pcs/min (L=100mm, A=B=5mm,AWG18)
Dimensions:560mm*530mm*370mm
Weight:50kg
Description

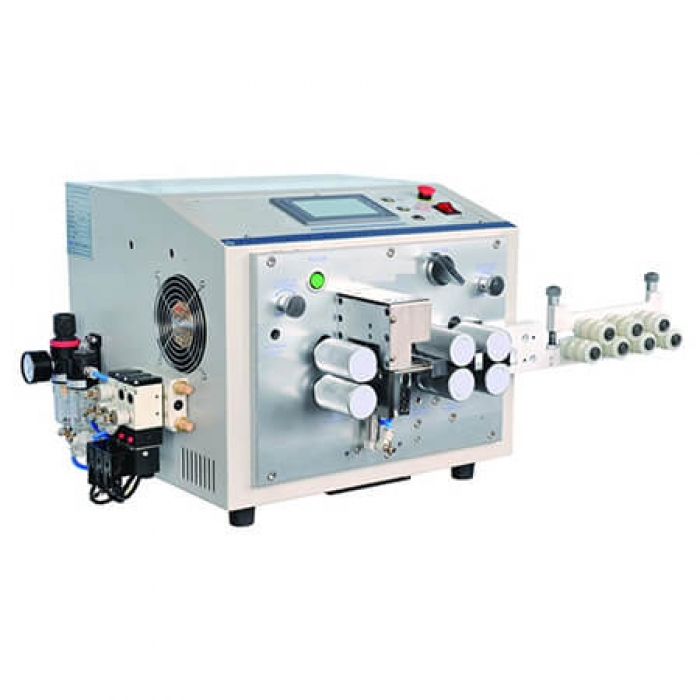

Cable cut and strip machine CSC-RJ5025

Also named automatic wire stripper machine, wirecuter machine

Features:

PLC control system.

Touch screen operation.

500 programs can be saved.

Support for various function expansion such as multi-point interspacing function, splitting function, twisting function.


Specifications:
Cutting length: 0.5mm-9.9m
Stripping length: front end:0.5-100mm, rear end:0.5-40mm
Cutting Tolerance: ±(0.5+0.002*L)mm
Wire Range: AWG4-AWG12
Wire material: PVC,TEFLON, Fiberglass Wire
Power: AC220V+/-10%,50/60HZ,450W
Air source: 0.4-0.6 MPa
Productivity: 39pcs/min (L=100mm, A=B=5mm,AWG18)
Dimensions: 560mm*530mm*370mm
Weight: 50kg
Delivery Information:
Package: 50kg
Dimension: 650mm*600mm*540mm (0.21 cdm)
Net Weight: 50kg
Gross Weight: 56kg
Port of Loading: China
Production Cycle: 7 working days
Transport time: 5 days to EL PASO by air
