| Cutting length:1mm-9.9m |
| Stripping length:0.5mm-30mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:AWG28-AWG14 |
| Wire material:PVC，TEFLON, Fiberglass Wire |
| Power:AC220V+/-10%,50/60HZ,260W |
| Air source:0.2-0.4MPa |
| Productivity:80pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions:418mm*358mm*308mm |
| Weight:25kg |

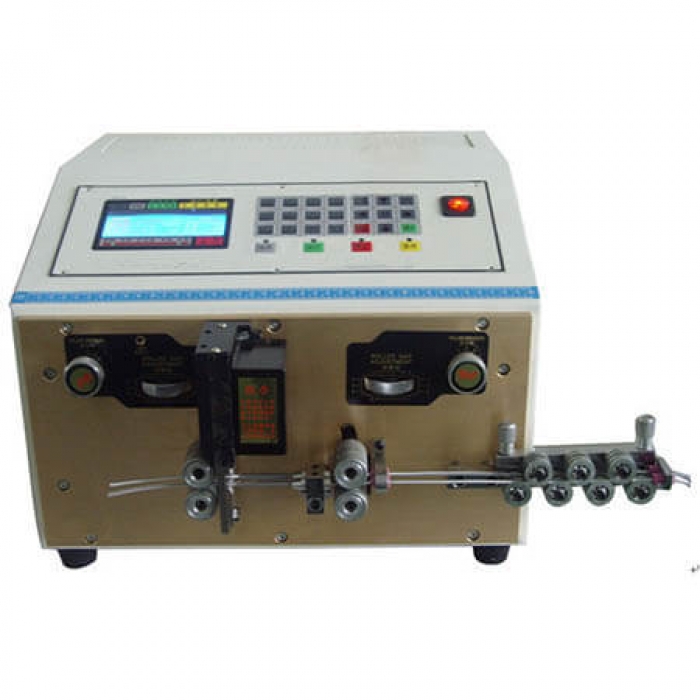

Cable cut and strip machine CSC-515II
Features:
Function same as CSC-515, and with higher-efficiency by processing double wires at a go. Apply for large scale factory.
| Specifications: | |
| Cutting length: | 1mm-9.9m |
| Stripping length: | 0.5mm-30mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | AWG28-AWG14 |
| Wire material: | PVC，TEFLON, Fiberglass Wire |
| Power: | AC220V+/-10%,50/60HZ,260W |
| Air source: | 0.2-0.4MPa |
| Productivity: | 80pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions: | 418mm*358mm*308mm |
| Weight: | 25kg |
| Delivery Information: | |
| Package: | 25kg |
| Dimension: | 605mm*625mm*445mm (0.17 cdm) |
| Net Weight: | 25kg |
| Gross Weight: | 28kg |
| Port of Loading: | China |
| Production Cycle: | 7 working days |
| Transport time: | 5 days to EL PASO by air |
Also named cutting cable machine,wire stripping machine,wire striper machine
