| Operation Touch screen |
| Display interface: LCD 153mm*85mm |
| Available Material coaxial cable, coaxial wire |
| Stripping length setting unit: 0.01mm |
| Wire Range Ø0.8mm-Ø4.0mm |
| Cutting depth setting unit:0.01mm |
| Stripping method: rotary knife + cutting knife |
| Maximum stripping layers: 6 layers |
| Working power: AC220V / 110V 50 / 60HZ |
| Cutting length 0-99999.9mm |
| Stripping length front end 0-120mm, rear end 0-45mm |
| Productivity 750—1300Pcs / h (depends on cutting length) |
| Dimensions 650 × 660 × 400 (mm) |
| Power: 800W |
| Tool material:tungsten steel + high speed steel |
| Storage capacity: 100 sets of processing parameter data |
| Weight 100kg |

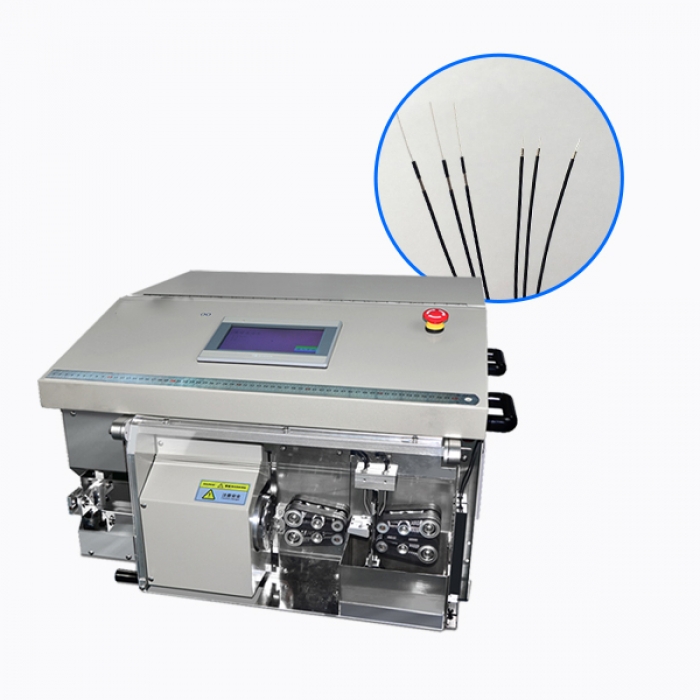

1. Suitable for precision processing of various flexible coaxial cables in the communication and RF industries;
2. The advanced rotary cutter head cooperates with the V-shaped cutting and stripping tool to make the machining process precise and efficient.
3. The functions of wire cutting, multi-strip stripping, middle stripping, peeling and leaving glue, and long and short stripping are complete!
4. Up to 100 sets of storage capacity, so that all kinds of processing data can be completely saved and retrieved at any time!
5. Silicone high temperature wire, high elastic wire, precision medical wire and high-end automobile wire and other ordinary wire stripping machines can not be processed on this machine can be perfectly processed on the machine without hurting the conductor!
